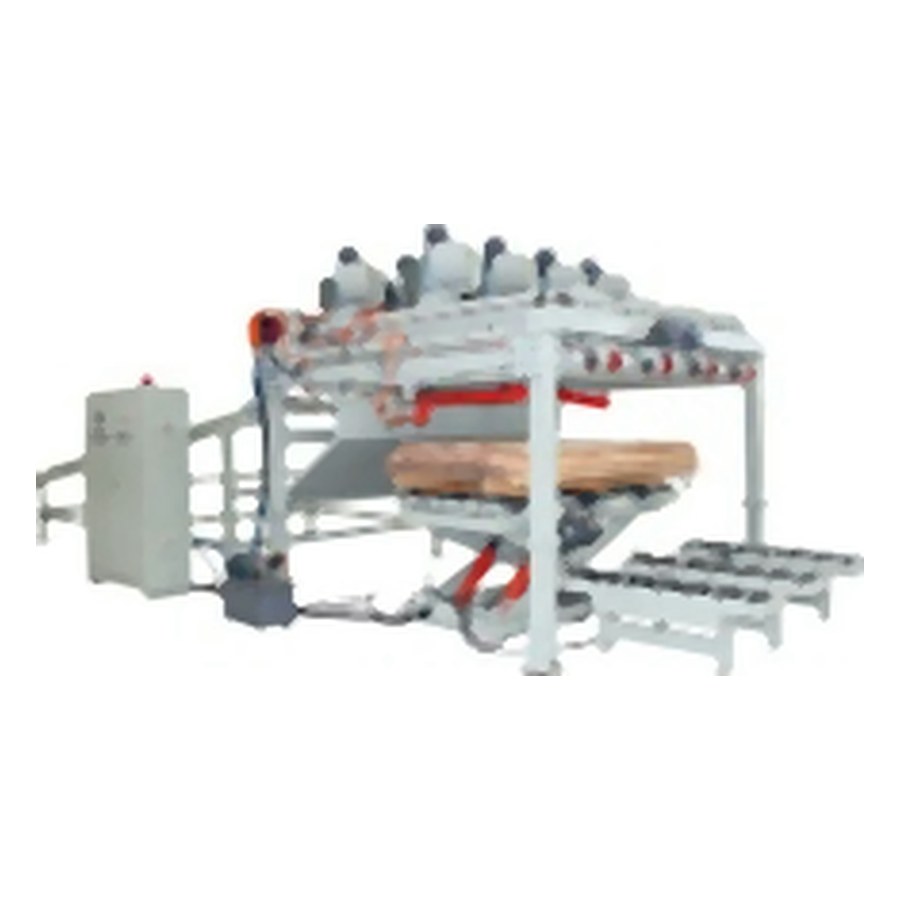

Automatic veneer stacker · BDD1126/4F-1
1 models · HTK-BDD1126/4F-1
- Built for — automatic stacking and sorting of veneer sheets after clipping
- MODEL BDD1126/4-2 BDD1120/3-1 BDD1113/8-1 BDD1113/4-1 Stacking size 8x4 ruler 6x3 ruler 4x8 ruler 4x4 ruler Maximum width 2600mm 2000mm 1350mm 1350mm Minimum width 2200mm 1500mm 800mm 1100mm Stacking veneer thickness 1.0-2.2mm 1.0-2.2mm 1.0-2.2mm 1.0-2.2mm Fastest speed 90m/min 90m/min 90m/min 90m/min Maximum stacking height 1000mm 1000mm 1000mm 1000mm Motor 57.75kw 57.75kw 57.75kw 57.75kw Outline size 10600x3100x3510mm 8800x2500x3510mm 9800x2400x3080mm 8600x2400x3080mm Weight 6800kg 4000kg 4800kg 2500kg Prev: NULL Next: BJG1326 CNC hobbing single board shearing machine Specializing in the production of various
- Tooling — blade and knife sizes matched to your material
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
| Model / Stock No. | HTK-BDD1126/4F-1 |
|---|---|
| Model | BDD1126/4F-1 BDD1113/8F-1 |
| Max. panel format | 8x4pes 4×4/4x8pes |
| Max. stacking length | 2600mm 1300mm |
| Veneer thickness | 0.8~3mm 0.8~3mm |
| Max. transport speed | 120m/Min 120m/Min |
| Suction fan | 2×7.5=15kw 2×7.5=15kw |
| Unloading servo motor | 1.5kw 2x1.5=3kw |
| Pallet lifting motor | 3kw 3kw |
| Output mode | 1.1kw |
| Total equipment power | 23.9kw 26.5kw |
Specifications are published on the model spec sheet — request it and we'll send the full data.
