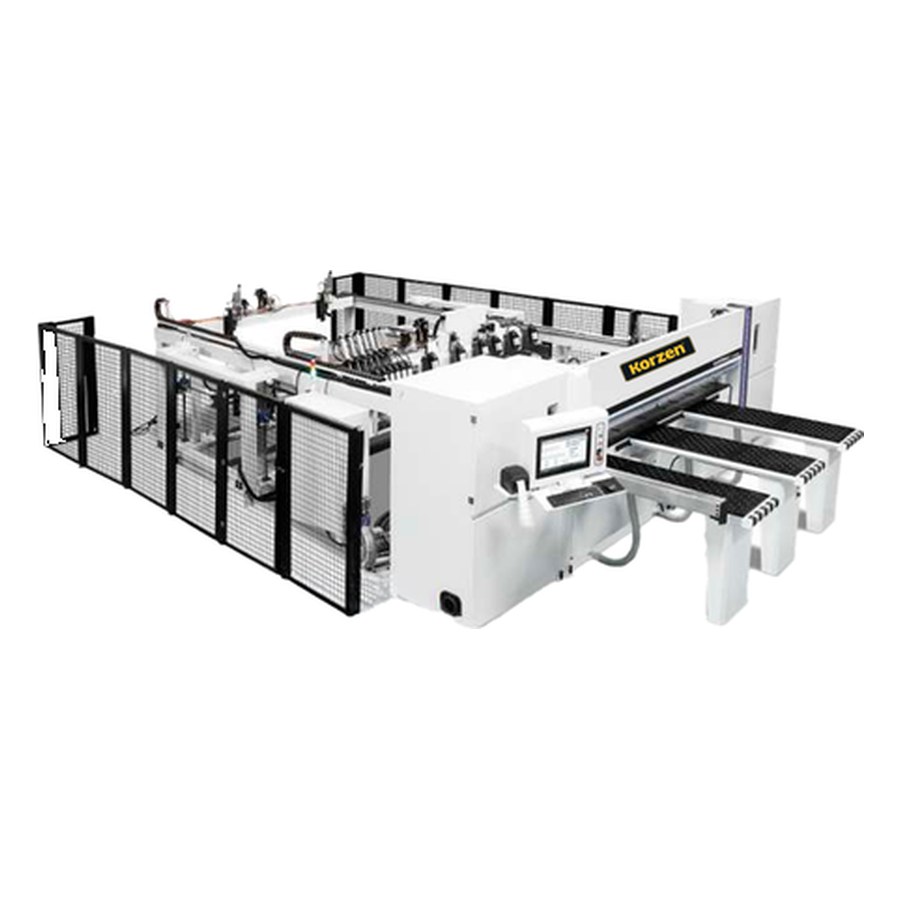

Beam saws, BSK series
2 models · BSK-3312RL · BSK-3812RL
- Built for — ripping, crosscutting and bevel cutting of MDF, plywood and laminated panels
- Max. cutting height — 120 mm
- Main motor — 25.73 kW
- Scoring motor — 2.24 kW
- Scoring blade as standard — chip-free cuts on melamine and laminate
- CNC control — programs stored and repeated, no manual setup between jobs
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
BSK-3312RL · BSK-3812RL
| Model / Stock No. | BSK-3312RL | BSK-3812RL |
|---|---|---|
| Cutting length | 3,300 mm | 3,800 mm |
| Cutting height | 120 mm (optional 150/165 mm) | – |
| Number of clamps | 10 | 12 |
| Main / scoring blade | 500 mm (optional 550 mm) / 200 mm | – |
| Return speed | 100 m/min / 120 m/min | – |
| Handling/Clamp Servo Motors | 3 HP three-phase 380 V | – |
| Main motor | 34.5 HP (optional 40/49.3 HP) three-phase 380 V · 4,000 rpm | – |
| Scoring motor | 3 HP (optional 3.9 HP) three-phase 380 V · 5,200 rpm | – |
Specifications are published on the model spec sheet — request it and we'll send the full data.
Not sure this is the right model?
Send us your material and sizes — we'll confirm the specification, tooling and container loading.
