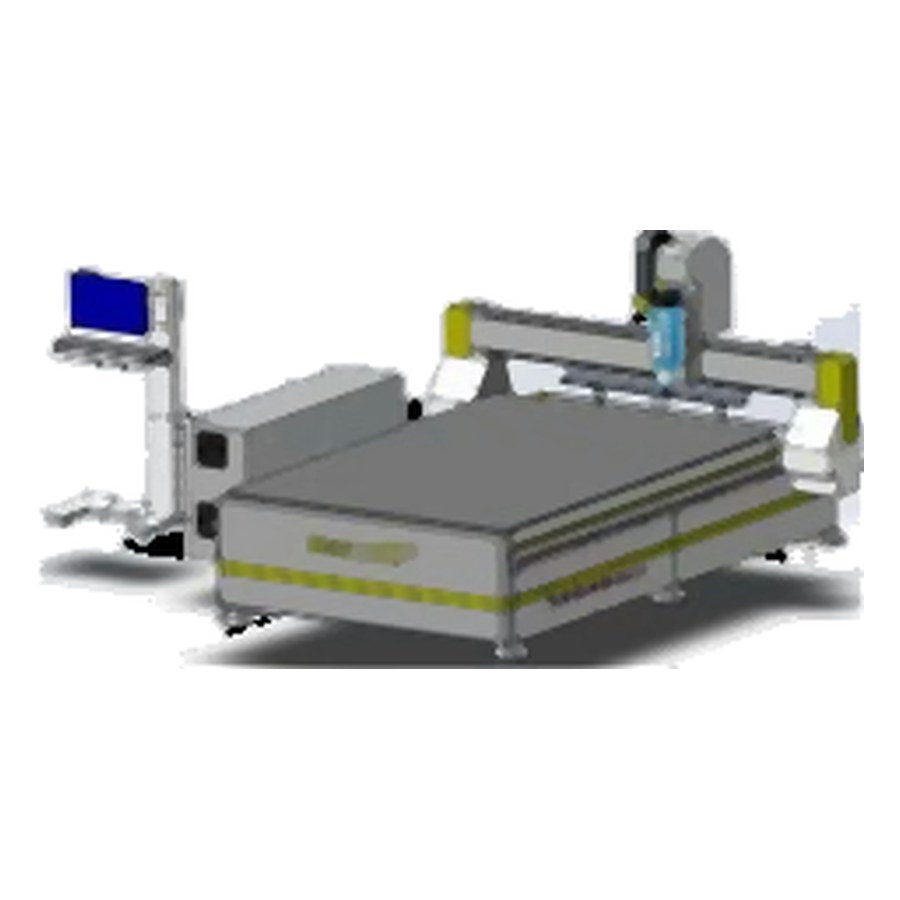

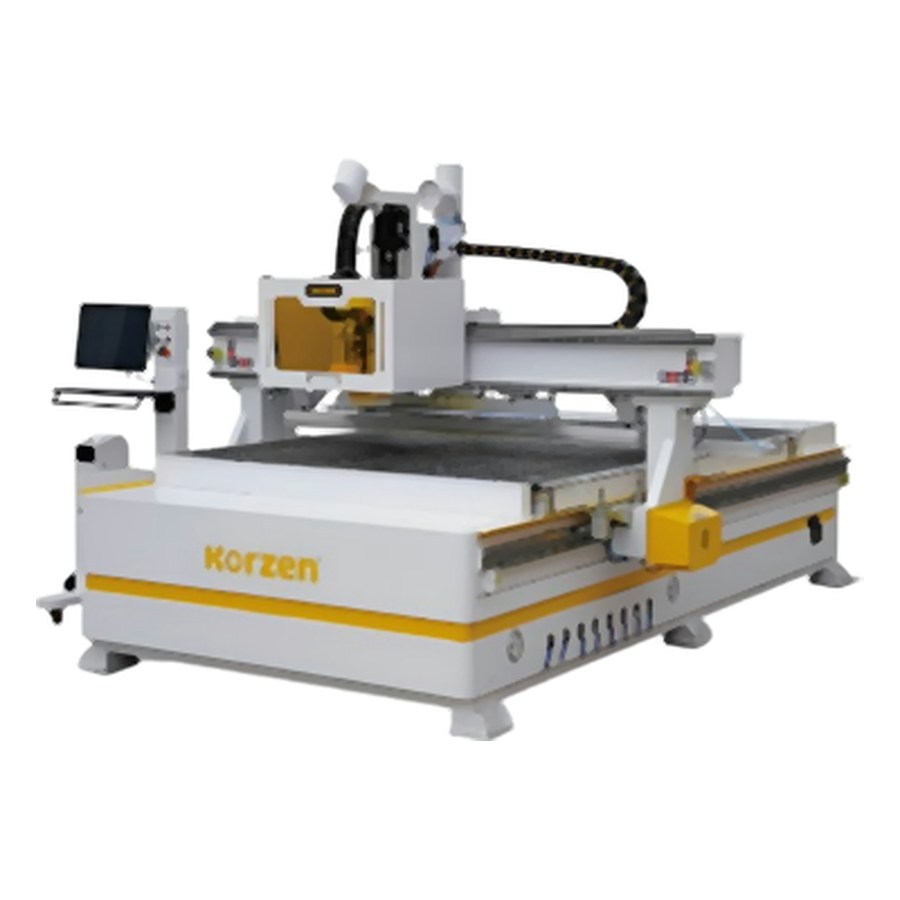

CNC routers · RCN-2919E

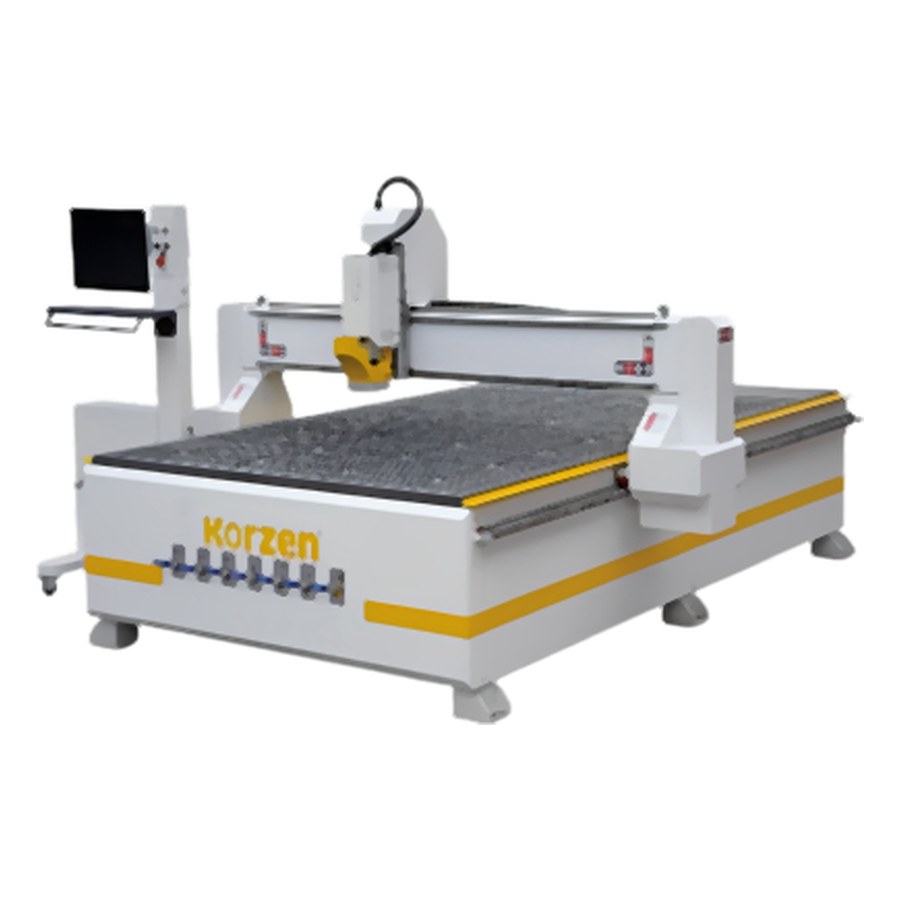

2 models · HTK-RCN-2919E · HTK-RCN-2919S1
- Built for — ripping, crosscutting and bevel cutting of MDF, plywood and laminated panels
- Tooling — blade and knife sizes matched to your material
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
| Model / Stock No. | HTK-RCN-2919E | HTK-RCN-2919S1 |
|---|---|---|
| Main spindle | 11.8 HP (9.0 kW) · 24,000 rpm | 7.9 HP (6.0 kW) · 24,000 rpm |
| Vacuum pumps | 1 × 14.8 HP (11.0 kW) · 8 setores | 1 × 9.9 HP (7.5 kW) · 7 setores |
| Number of tools | 12 ATC · Linear | 1 spindle |
| Total power | 30.0 kW · 220 V three-phase (optional 380 V) | 20.0 kW · 220 V three-phase (optional 380 V) |
| Production capacity | 20–25 panels/day | 15–20 panels/day |
| Working area (L × W × H) | – | 2,900 × 1,900 × 200 mm |
| X / Y speed | – | 60 m/min (servo drives 1.0 kW) |
| Control system | – | Weihong / NC Studio |
| Software integration | – | Promob; CorteCloud; MobCloud; R-Hex; WPS; Dinabox; Gabster; TopSolid and others |
| Materials | – | MDF, MDP, plywood, solid wood, PVC, acrylic, ACM, PS, aluminium, copper and others |
Specifications are published on the model spec sheet — request it and we'll send the full data.
Not sure this is the right model?
Send us your material and sizes — we'll confirm the specification, tooling and container loading.
Get a quote
