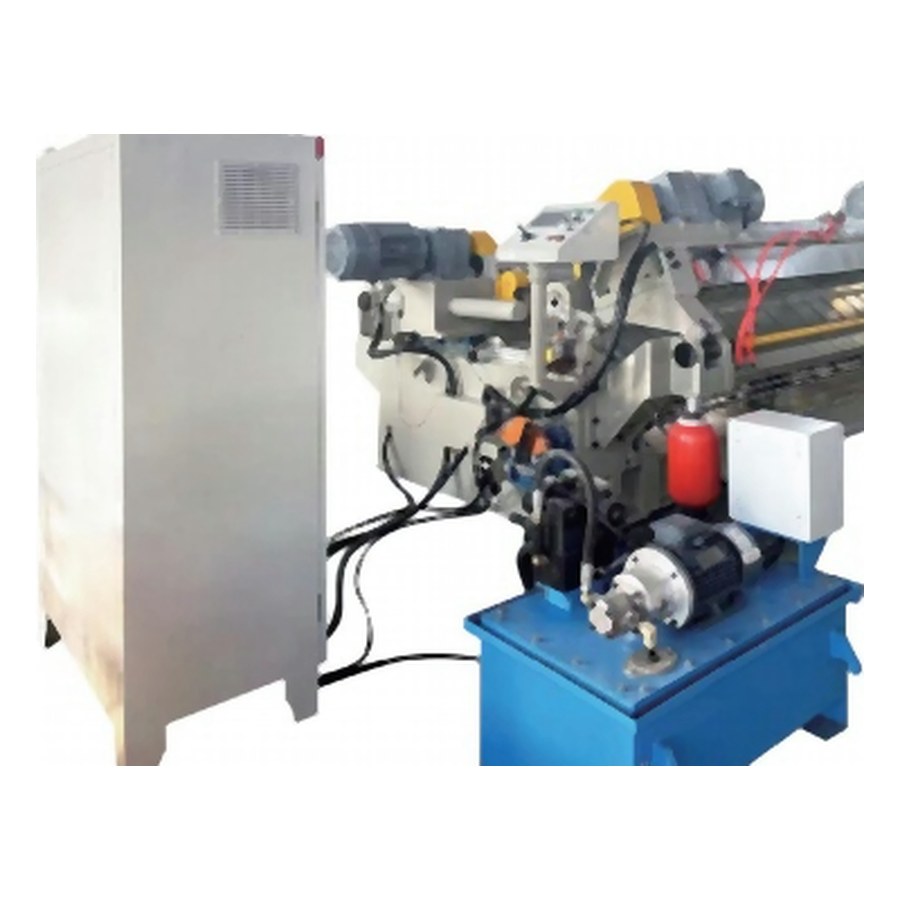

CNC Spindleless Rotary Peeling Lathe · SLJ2600/5B
1 models · HTK-SLJ2600/5B
- Built for — apps.10
- Tooling — blade and knife sizes matched to your material
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
| Model / Stock No. | HTK-SLJ2600/5B |
|---|---|
| Model | SL(J)2600/5B SL(J)2000/5B SL(J)1350/5B |
| Max. peeling length | 2600mm 2000mm 1350mm |
| Max. peeling diameter | Φ480mm Φ480mm Φ480mm |
| Diametrofinal do rolete | Φ40mm Φ40mm Φ40mm |
| Espessura da lamina desenrolada | 0.8~3.0mm 0.8~3.0mm 0.8~3.0mm |
| Output speed | 60m/min 60m/min 60m/min |
| Potencia domotordosrolos duplos | 2x11=22kW 2x11=22kW 2x7.5=15kW |
| Potencia do motordo rolosimples | 2×11=22kW 2×7.5=15kW 2×7.5=15kW |
| Feed servo motor | 11kW 7kW 7kW |
| Servomotorda aberturadafaca | 1.5kW 1.5kW 1.5kW |
| Motordecorte | 3kW 2.2kw 2.2kw |
| Motordo rologiratorio | 1.5kW 1.5kW 1.5kW |
| Hydraulic motor power | 1.5k 1.5kW 1.5kW |
| Total power | 62.5kW 50.7kW 43.7kW 10 |
| Peso damaquina | 13160kg 12360kg 11660kg |
Specifications are published on the model spec sheet — request it and we'll send the full data.
