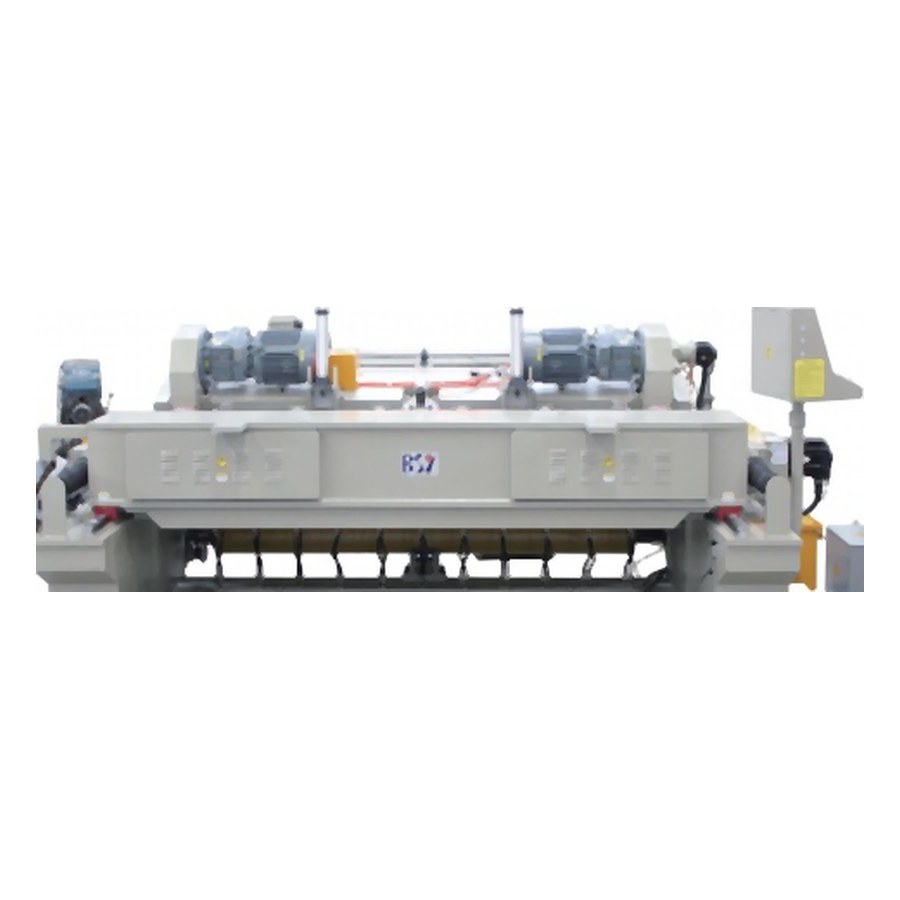

CNC Spindleless Rotary Peeling Lathe · SLK2600/5F
1 models · HTK-SLK2600/5F
- Built for — apps.10
- Tooling — blade and knife sizes matched to your material
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
| Model / Stock No. | HTK-SLK2600/5F |
|---|---|
| Model | SLK2600/5F SLK2000/5F SLK1350/5F |
| Max. peeling length | 2600mm 2000mm 1350mm |
| Max. peeling diameter | Φ480mm Φ480mm Φ480mm |
| Final roller diameter | Φ60mm Φ60mm Φ60mm |
| Peeled veneer thickness | 0.8~3.0mm 0.8~3.0mm 0.8~3.0mm |
| Output speed | 30~80m/Min 30~80m/Min 30~80m/Min |
| Double roller motor power | 2×11=22kw 2×11=22kw 2×7.5=15kw |
| Single roller motor power | 2×11=22kw 2×7.5=15kw 2×7.5=15kw |
| Double roller feed servo | 11kw 7kw 7kw |
| Single roller feed servo | 3.5Kw 3.5Kw 3.5Kw |
| Pressure bar servo motor | 1.5kw 1.5kw 1.5kw |
| CNC servo for backlash angle | 1.5kw 1.5kw 1.5kw |
| Hydraulic unit motor power | 1.5kw 1.5kw 1.5kw |
| Total power | 63kw 52kw 45kw |
| Machine weight | 13500kg 12500kg 11700kg |
Specifications are published on the model spec sheet — request it and we'll send the full data.
Not sure this is the right model?
Send us your material and sizes — we'll confirm the specification, tooling and container loading.
