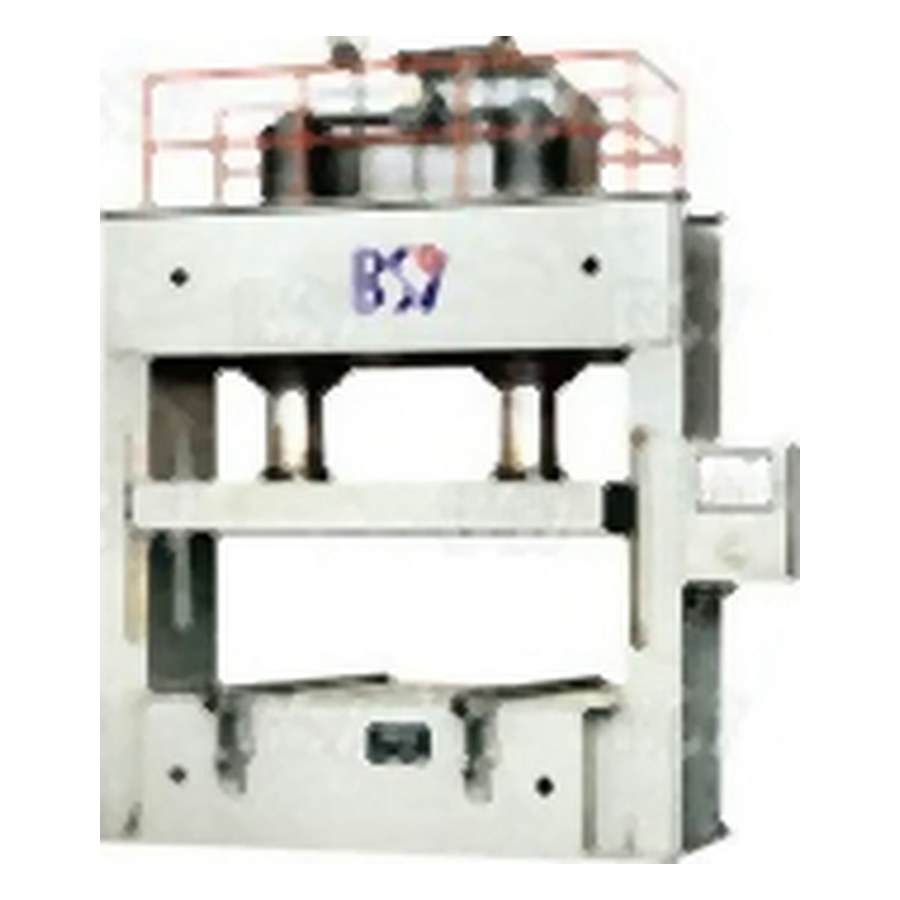

Cold press (pre-press) · BY814
1 models · HTK-BY814
- Built for — cold pre-pressing and hot pressing of glued plywood assemblies
- MODEL BY814×8/4C BY814×8/5B Nominal pressure(KN) 4000 5000 Panel unit pressure(Mpa) 1.3 1.3 Platen width(mm) 2700×1370 2700×1370 Maximum working stroke(mm) 1000 1000 Net work opening(mm) 300-1300 300-1300 Diameter and quantity of pressure cylinder(mm) Φ 320/2只 Φ 360/2只 Diameter and quantity of lifting cylinder(mm) Φ 80/2 只 Φ 80/2 只 Feeding speed(m/min) 6.78 6.78 Motor power(kw) 16.1 16.1 Host size(mm) 3500×2400×4650 3500×2400×4750 weight(kg) 13000 14000 Prev: BYG48-40-12 Veneer drying hot press Next: Hydraulic press with inlet and outlet plate Specializing in the production of various
- Tooling — blade and knife sizes matched to your material
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
| Model / Stock No. | HTK-BY814 |
|---|---|
| Model | BY814X8/5C |
| Nominal pressure | 5000kn |
| Specific pressure on panel | 1.3mpa |
| Platen dimensions | 2700×1370mm |
| Max. stroke | 1000mm |
| Table up/down speed | 4m/Min |
| Working opening | 300~1300mm |
| Pressure cylinders (×qty) | 0360mm/2 |
| Cilindros de elevacao (o x qtd) | 0 80mm/ 2 |
| Cilindros de subida/descida (×qtd) | 063mm/ 6 |
| Max. working pressure | 25mpa |
| Transport speed | 6m/Min |
| Rows of chains | 3fileiras |
| Transport motor power | 2.2kw |
| Hydraulic unit motor power | 15kw |
| Total power | 17.2kw 10 |
| Dimensions (L×W×H) | 3600x2300x5650mm |
| Machine weight | 18000kg |
Specifications are published on the model spec sheet — request it and we'll send the full data.
