Curved edge banders
5 models · HTK-CBC-1825 · HTK-CBC-273A · HTK-CBC-273AAL …
- Built for — curved and short-run edge banding where a full automatic line is not justified
- Panel thickness — 35–70 mm
- Drive power — 3.8–6.5 kW
- PUR-capable glue system — a near-invisible joint that resists heat and moisture
- EVA hot-melt glue pot — low running cost and simple maintenance
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
HTK-CBC-1825 · HTK-CBC-273A · HTK-CBC-273AAL · HTK-CBC-273DAAL · TBC-1825

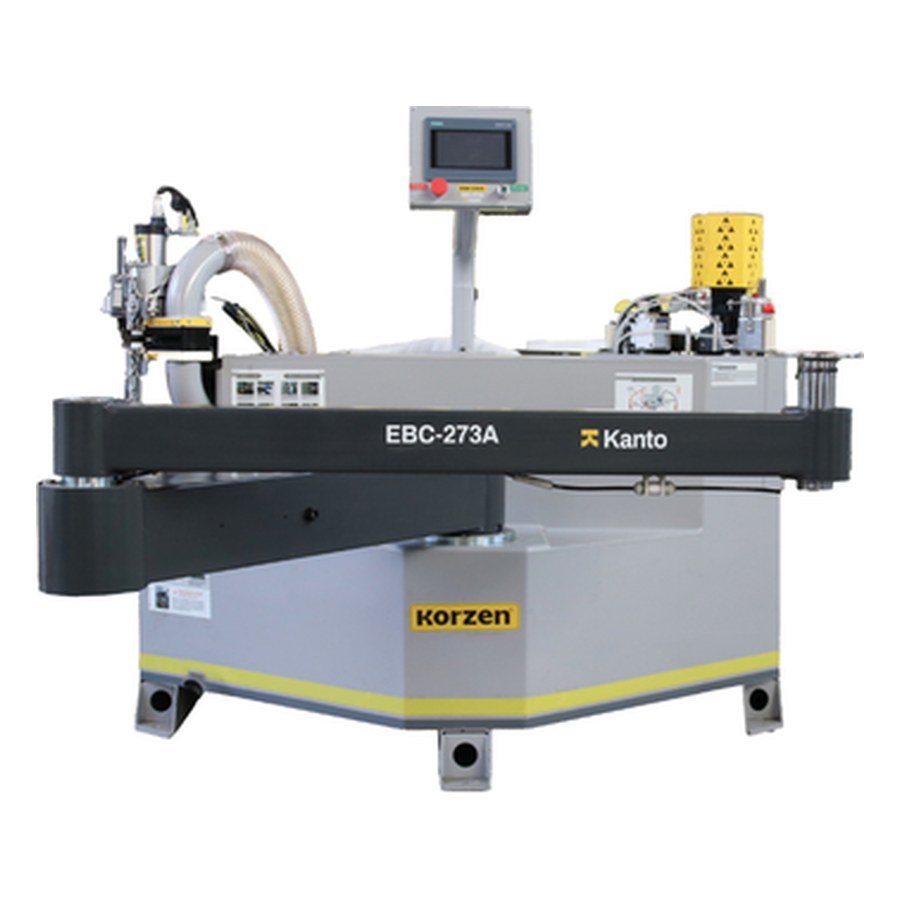

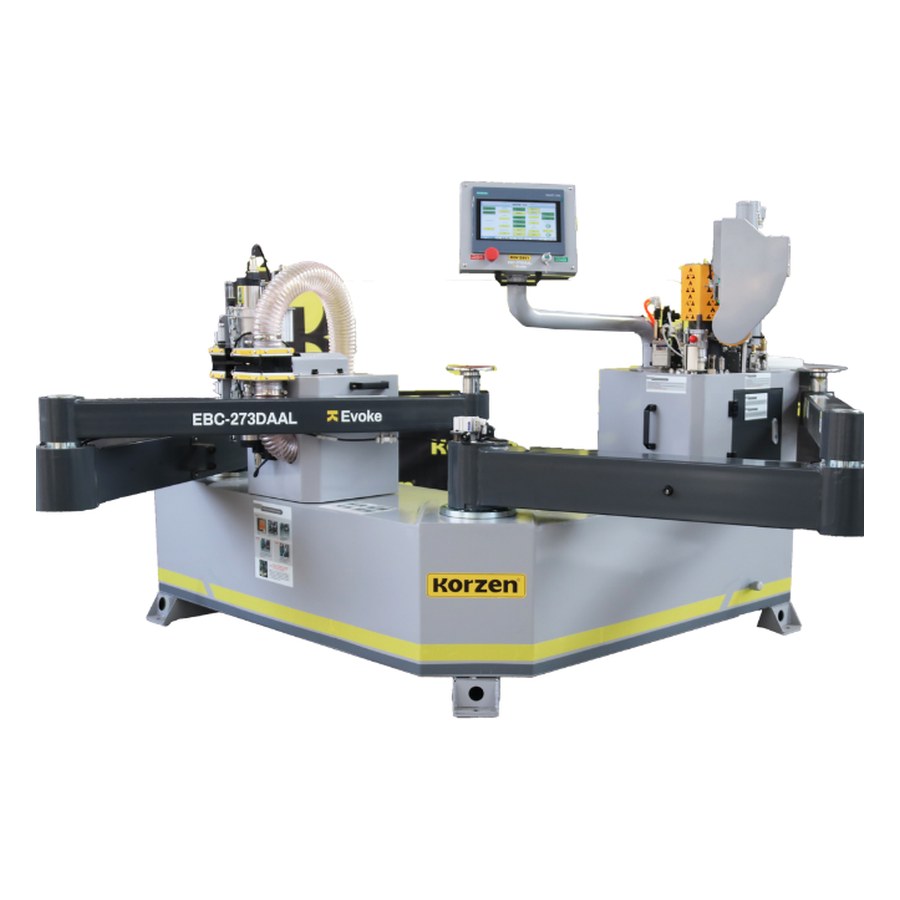

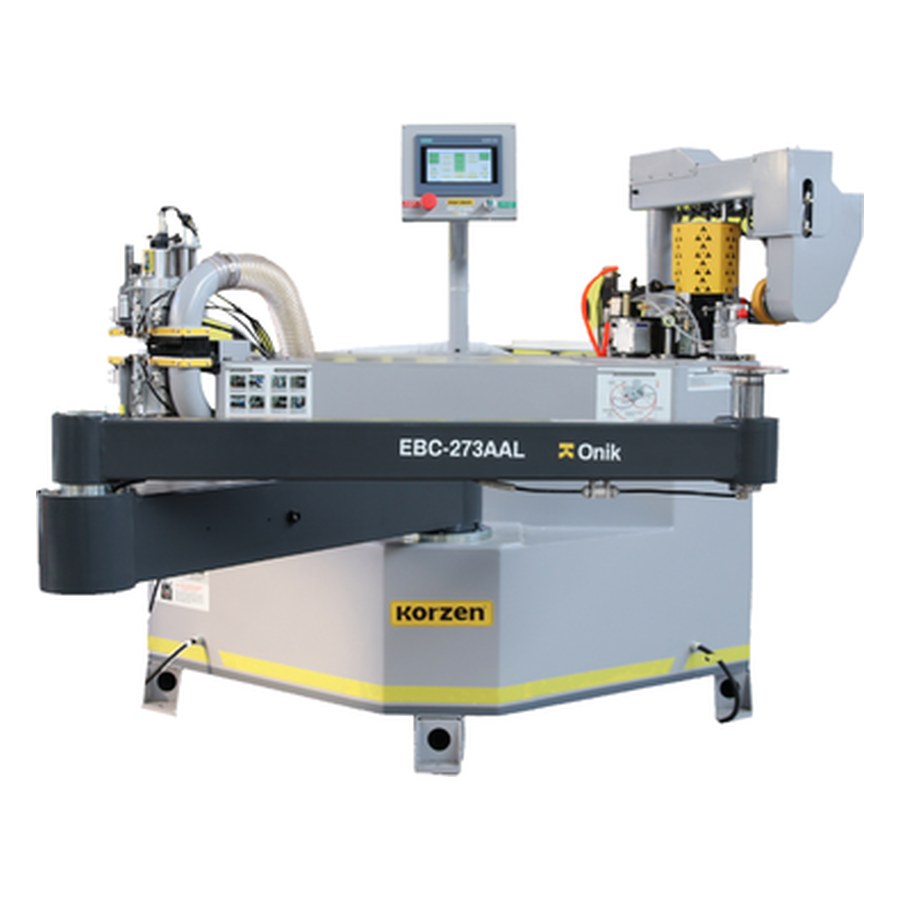

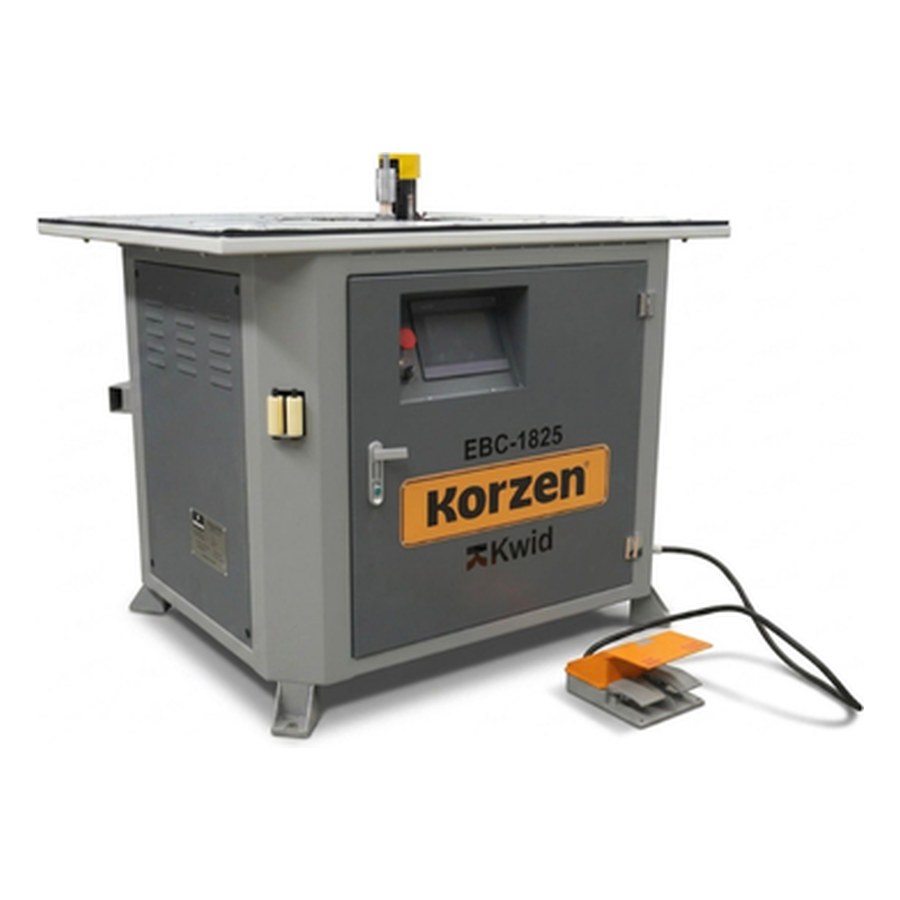

| Model / Stock No. | HTK-CBC-1825 | HTK-CBC-273A | HTK-CBC-273AAL | HTK-CBC-273DAAL | TBC-1825 |
|---|---|---|---|---|---|
| Functions | Gluing round and concave curved parts | Gluing curved parts + double trimming | Gluing curved parts + double trimming | Gluing | gluing de workpieces round and curved inner |
| Edge band type | 0.45–2.0 mm | 0.45–3.0 mm | 0.45–3.0 mm | 0.45–3.0 mm | 0.45–2.0 mm |
| Panel height | 15–35 mm | 10–70 mm (glue + edge trim) | 10–70 mm (glue + edge trim) | 10–70 mm (glue + edge trim) | 15–50 mm |
| Min. length / diameter | Min. Ø 150 mm | 240–2,500 mm | 240–2,500 mm | 240–2,500 mm | ø min. 150 mm |
| Min. radius | 15 mm | 20 mm | 20 mm | 20 mm | 15 mm |
| Variable speed | 1–10 m/min | 1–12 m/min | 1–18 m/min | 1–18 m/min | – |
| Glue pot | 400 ml EVA/PO (110–210 °C) | 2,600 ml EVA/PO/PUR (110–210 °C) | 2,600 ml EVA/PO/PUR (110–210 °C) | 2,600 ml EVA/PO/PUR (110–210 °C) | 400 ml EVA/PO (110–210 °C) |
| Control panel | Touch 7" front | Front | Front | Touch screen 9" upper | – |
| Drive power | 3.8 kW · three-phase 220 V (optional 380 V) | 5.2 kW · three-phase 220 V (optional 380 V) | 6.5 kW · three-phase 220 V (optional 380 V) | 6.5 kW · three-phase 220 V (optional 380 V) | 3.8 kW · three-phase. 220 V (Opt. 380 V) |
| Speed | – | – | – | – | 3–15 m/min |
Specifications are published on the model spec sheet — request it and we'll send the full data.
