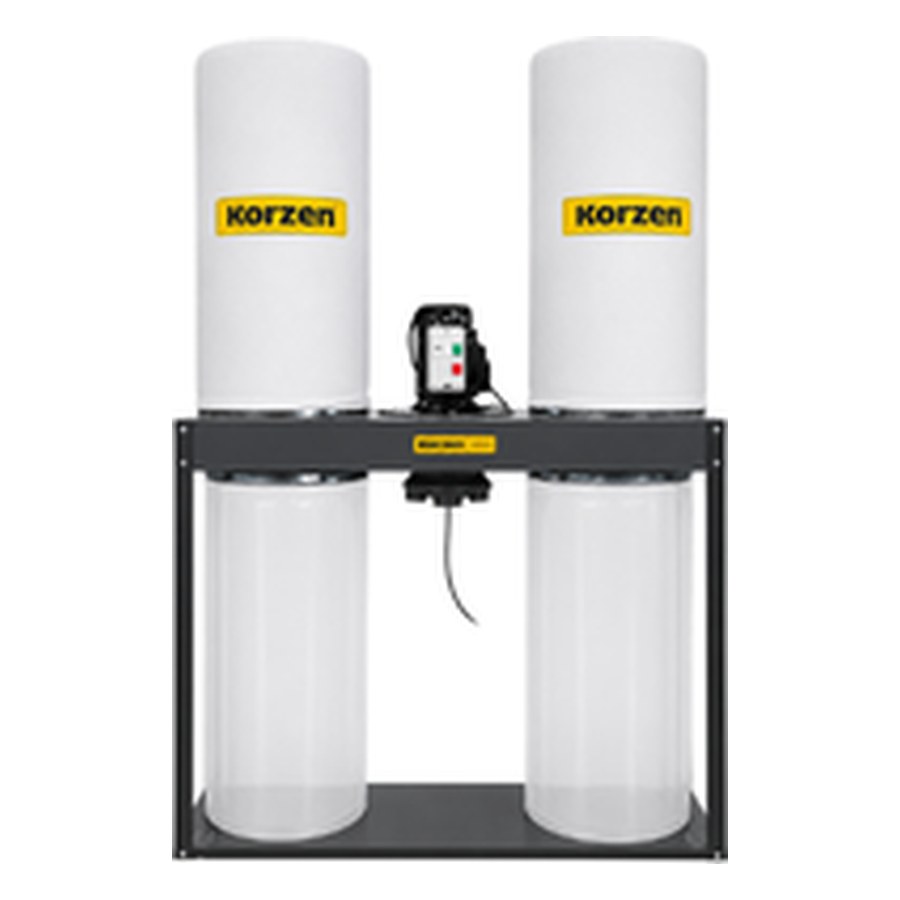

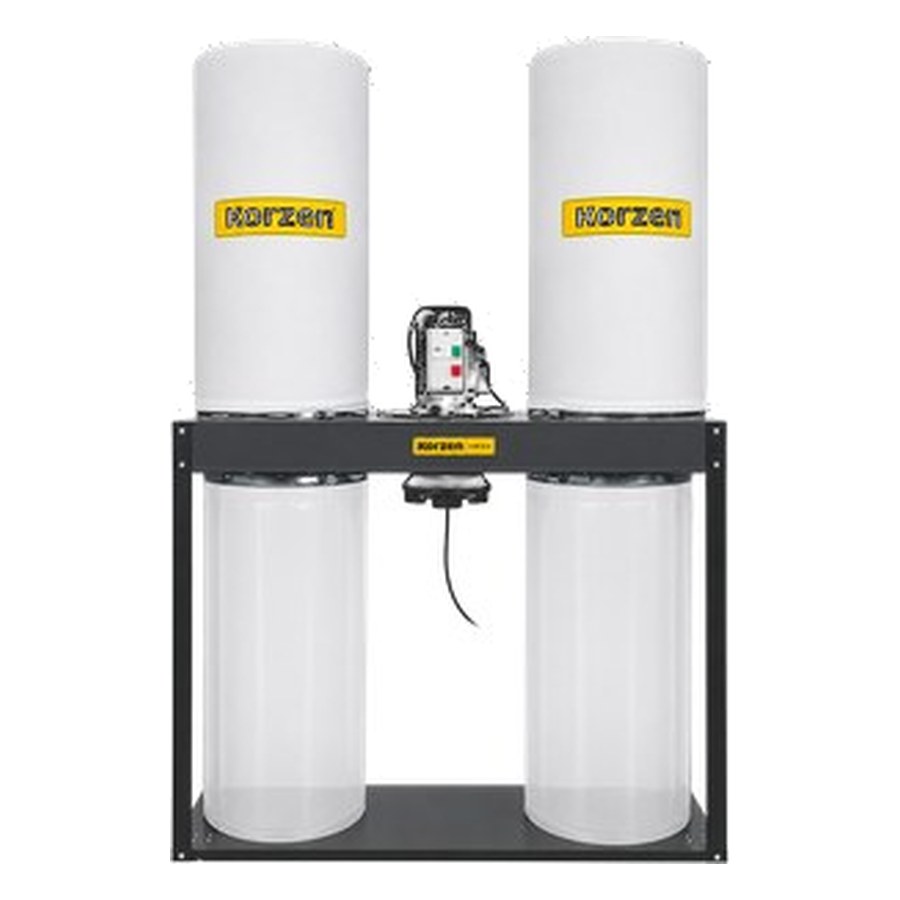

DCR-445S
1 models · HTK-COL-445S
- Built for — feeding, roller tables, lifting and dust or chip extraction across the workshop
- Dust outlets — 1
- Drive power — 2.24 kW
- Guards and safety switches fitted as standard
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
HTK-COL-445S
| Model / Stock No. | HTK-COL-445S |
|---|---|
| Air flow | 4100 m³/h |
| Filtration | 36x sleeve filters Ø175 mm, felt / polyester |
| Outlets for machines | 1 × 6" (150 mm) or 3 × 4" (100 mm) |
| Frame | Reinforced Steel Plate, Industrial Angle |
| On/off switch | Contactor with thermal protection and emergency stop |
| Dimensions (L × W × H) | 1590 × 610 × 2250 mm (68kgs) |
| Drive power | 3 HP single-phase 220 V or 2 HP three-phase 220/380 V |
| Can be mounted inverted for outlets | Can be mounted inverted so hose outlets face up |
| Enclosed industrial aluminium rotor | Sleeve filter + collection bag |
| Tank | 140 litres, clear PVC |
Specifications are published on the model spec sheet — request it and we'll send the full data.
