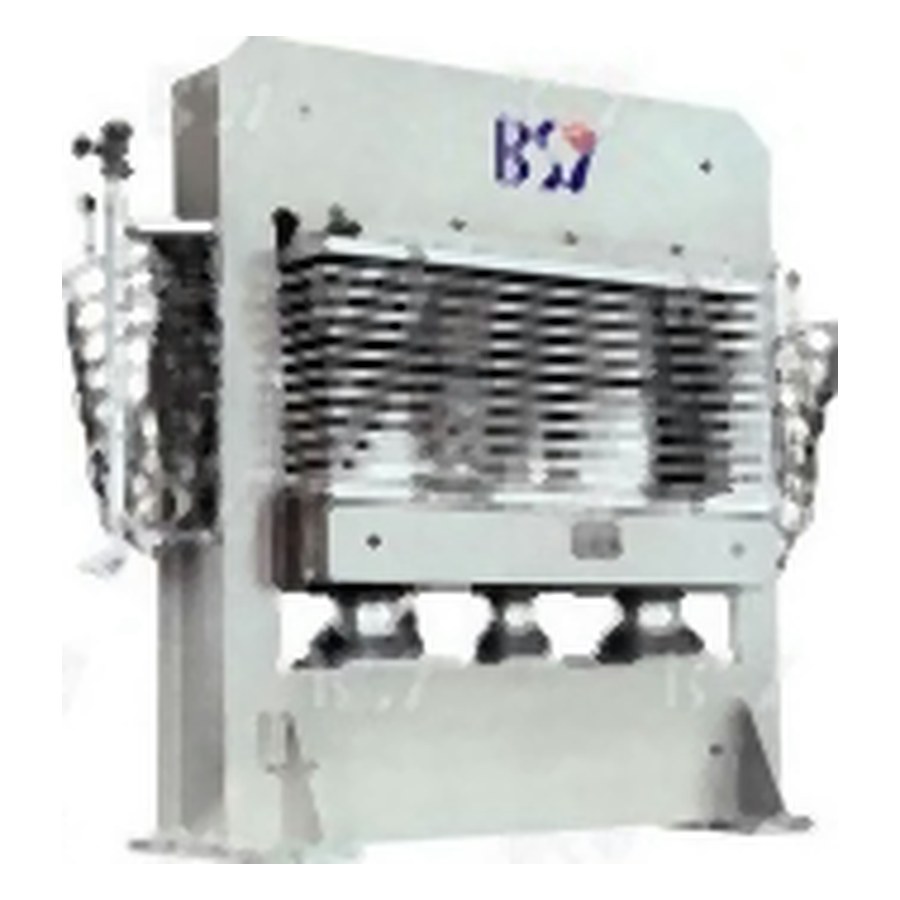

Hot press · BY214X8/6-15
1 models · HTK-BY214X8/6-15
- Built for — cold pre-pressing and hot pressing of glued plywood assemblies
- Model BY214×8/4-15 BY214×8/6-15 Nominal pressure(KN) 4000 6000 Hot pressing plate size(mm) 2700×1370×42 2700×1370×42 Part size (ruler) 4×8 4×8 Open file(mm) 70 70 Number of layers (layers) 15 15 Piston cylinder diameter(mm) 2-Φ320；1-Φ200 2-Φ360；1-Φ200 Working stroke(mm) 1050 1050 Working pressure(MPa) 25 25 Motor power(kw) 26 26 Closing velocity(m/min) 4 4 Host size(mm) 5000×1446×5395 5000×1446×5395 Net weight(kg) 34000 35000 Prev: Hydraulic press with inlet and outlet plate Next: Null Specializing in the production of various
- Tooling — blade and knife sizes matched to your material
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
| Model / Stock No. | HTK-BY214X8/6-15 |
|---|---|
| Model | BY214X8/6-15 BY214×8/6-12 |
| Nominal pressure | 6000kn 6000kn |
| Plywood format | 3x6/4x8pes 3x6/4x8pés |
| Plywood thickness | 2.5~25mm 2.5~25mm |
| Hot platen dimensions | 2700×1370×42(52)Mm 2700×1370×42(52)Mm |
| Number of gaps | 15 vaos 12 vaos |
| Working opening | 70mm 70mm |
| Max. stroke | 1050mm 840mm |
| Pressure cylinders (×qty) | 2~Φ360、Φ190 2~Φ360、Φ190 |
| Pressure on panel | 1.68mpa 1.68mpa |
| Max. working pressure | 25mpa 25mpa |
| Closing speed | 4m/Min 4m/Min |
| Motor power | 30kw 30kw |
| Dimensions (L×W×H) | 6050×1500×5600mm 5700×1500×5024mm |
| Net weight | 35000Kg 31200Kg |
Specifications are published on the model spec sheet — request it and we'll send the full data.
