HRT-25610
16 models · HTK-MRT-25610 · SRD-3014 · BRL-6513L/R …
- Built for — planing, moulding, sanding, pressing and finishing in joinery and furniture production
- Max. planing width — 600 mm
- Spindle speed — 5,700 rpm
- Motor power — 1.3–3 kW
- Automatic feed and lifting — consistent infeed at production rates
- Tilting blade and table for bevel work without a second setup
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
HTK-MRT-25610 · SRD-3014 · BRL-6513L/R · BRL-8013L/R · BRL-9513L/R · BRL-1113L/R · FTL-1860 · HTR-25610 · SHT-25610 · HEG-22153 · BRT-1C · BRT-5C · MPM-1 · BRT-5 · BRT-9 · CBT-2918
| Model / Stock No. | HTK-MRT-25610 | SRD-3014 | BRL-6513L/R | BRL-8013L/R | BRL-9513L/R | BRL-1113L/R | FTL-1860 | HTR-25610 | SHT-25610 | HEG-22153 | BRT-1C | BRT-5C | MPM-1 | BRT-5 | BRT-9 | CBT-2918 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Planer Working Tables | 400 × 1800 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Cutterblock Diameter | 70 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Cutterblock Rotation Speed | 5700 rpm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Number of knives | 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Thicknesser Working Table | 300 × 760 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Feed speed | 7 m/min | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Max. working height | 220 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Circular Saw Working Table | 326 × 1112 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Blade diameter | 300 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 90° Cutting Height at 90° | 100 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Blade Inclination | 45° | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Shaper Shaft Rotation Speed | 2000 / 3100 / 4000 / 7000 rpm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Mortiser Working Table | 250 × 500 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Longitudinal Stroke | 205 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Transversal Stroke | 95 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Vertical Stroke | 90 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |

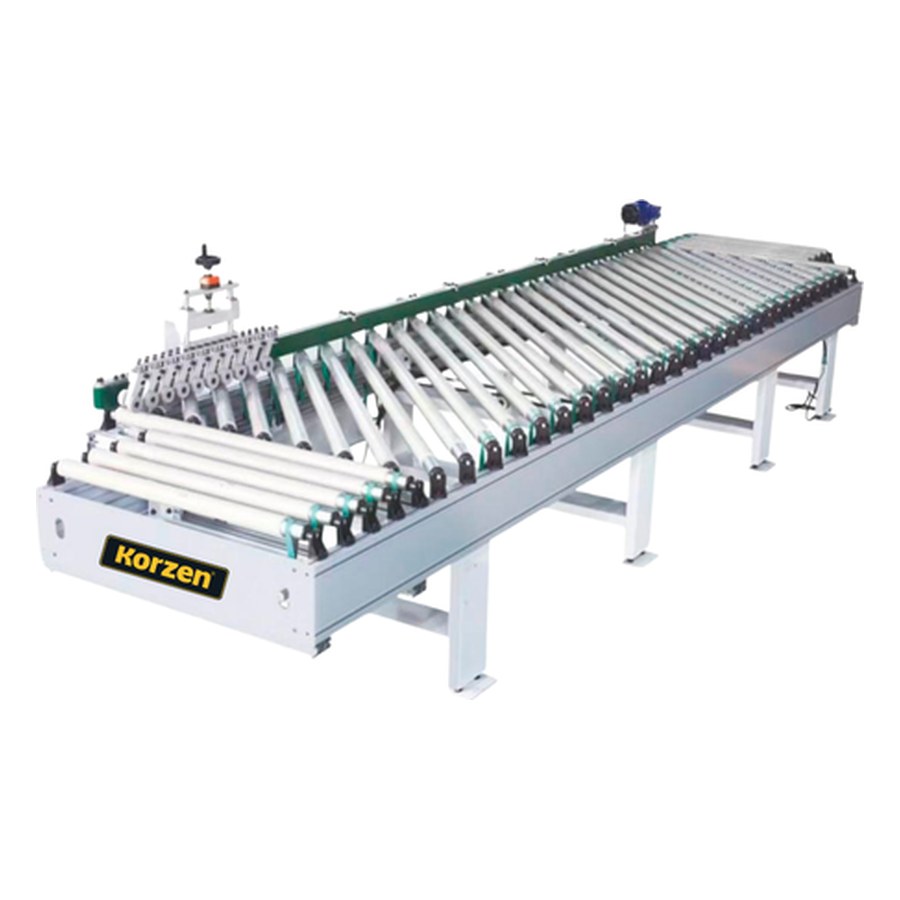

| C/rollers Diagonal | – | Infeed Table w/ Rollers Diagonal p/Coladeiras for Edge banders | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Table length | – | 3000 mm | – | – | – | – | 1800 mm | – | – | – | – | – | – | – | – | 2900 mm |
| Table width | – | 1400 mm | – | – | – | – | 600 mm | – | – | – | – | – | – | – | – | 1800 mm |
| Max. capacity per panel | – | 100 kg | 100 kg | 100 kg | 100 kg | 100 kg | 100 kg | – | – | – | – | – | – | – | – | – |
| Width per Panel | – | 150—1220 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Length per Panel | – | 150—2750 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Thickness per Panel | – | 10—60 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Speed | – | 10—40 m/min | 10—30 m/min | – | – | – | – | – | – | – | – | – | – | – | – | 10—40 m/min |
| Drive power | – | 2.0 kW three-phase 220 V (Opt. 380 V) | 10 × 60 mm 2.0 kW three-phase 220 V (Opt. 380 V) | 2.0 kW three-phase 220 V (Opt. 380 V) | 2.0 kW three-phase 380 V (Opt. 220 V) | 3.0 kW three-phase 380 V (Opt. 220 V) | 1.3 kW three-phase 380 V (Opt. 220 V) | – | – | 3.0 kW three-phase 380 V (Opt. 220 V) | – | – | – | – | – | 1.5 kW three-phase 220 V (Opt. 380 V) |
| Main conveyor dimensions | – | – | L 6500 x Large. 1300 mm L. 6500 x W. 1300 mm | – | – | L 11000 x W 1300 mm between 8.50 and 9.50 m L. 11000 x W. 1300 mm Between 8.50 | – | – | – | – | – | – | – | – | – | – |
| Edge bander length | – | – | between 4.00 and 5.00 m Between 4.00 and 5.00 m | Between 5.50 and 6.50 m standard: "L" left (optional "R" right) standard: "L" Left | Between 7.00 and 8.00 m standard: "L" left (optional "R" right) standard: "L" Left | – | – | – | – | – | – | – | – | – | – | – |
| Panel dimensions | – | – | L 150 × 2750 mm Large 30 × 1200 mm H 10 × 60 mm L.150 × 2750 mm W.30 × 1200 mm H | L150 × 2750 mm W 30 × 1200 mm H10 × 60 mm | L150 × 2750 mm W 30 × 1200 mm H10 × 60 mm | L150 × 2750 mm W30 × 1200 mm H 10 × 60 mm | – | – | – | – | – | – | – | – | – | – |
| Rotation Direction | – | – | – | – | – | (optional "R" right) (Optional "R" Right) | – | – | – | – | – | – | – | – | – | – |

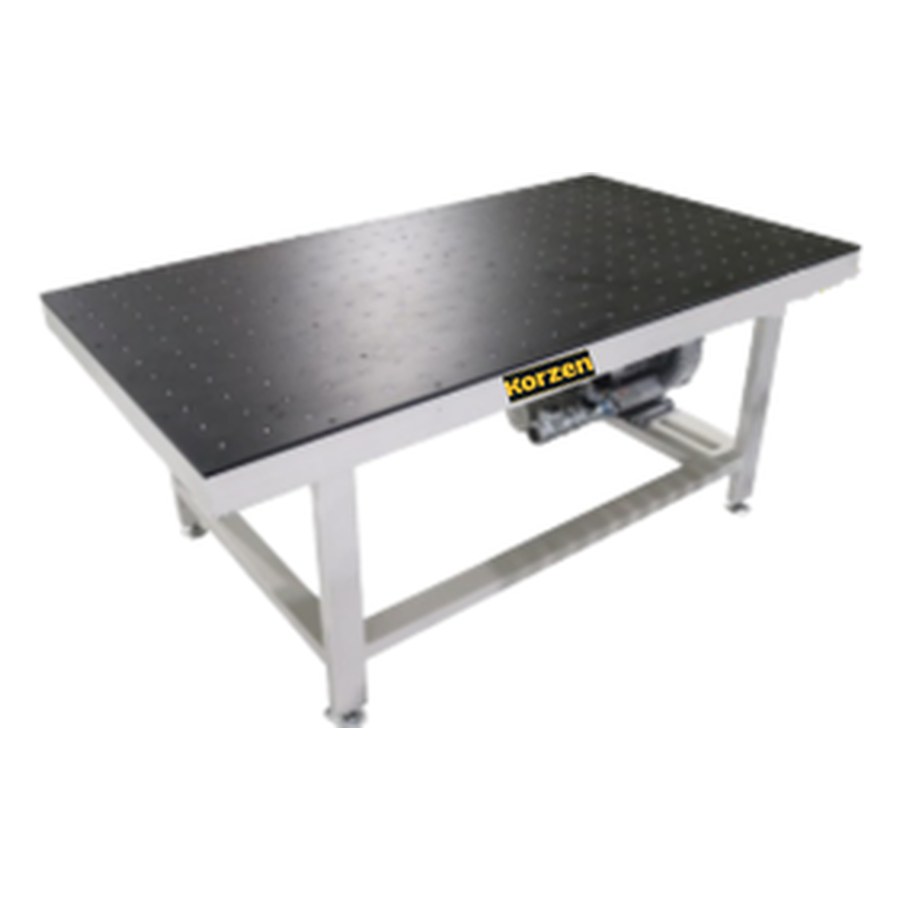

| Support Table w/ Air Cushion | – | – | – | – | – | – | Air | – | – | – | – | – | – | – | – | – |
| Working height | – | – | – | – | – | – | 950 mm +-50 mm | 300 mm | 300 mm | – | Adjustable - 700 to 1080 mm | Adjustable - 670 up to 1150 mm | – | Adjustable - 650 up to 1100 mm | – | – |
| Frame | – | – | – | – | – | – | Reinforced Steel Plate | – | – | – | – | – | – | – | – | – |
| Table Revestimento | – | – | – | – | – | – | TS de Alta resistance | – | – | – | – | – | – | – | – | – |
| Dimensions | – | – | – | – | – | – | 1800 × 600 × 950 mm | – | – | – | 630 × 400 × 700/1080 mm (6.5ks) | 550 × 400 × 670/1150 mm (18kgs) | 1050 × 800 × 1190 mm (30kgs) | 1150 × 500 × 650/1100 mm (27kgs) | Antiderrapanete 1650 × 500 × 650/1100 mm (35kgs) | – |
| Load capacity | – | – | – | – | – | – | – | 1000kgs/m 1000 kg/m | 1000kgs/m 1000 kg/m | – | 50 kg | 50 kg | 100 kg | 100 kg | Yes - Frame Steel Reinforced | – |
| Sealed bearings | – | – | – | – | – | – | – | Yes | Yes | – | – | – | – | – | – | – |
| Brake | – | – | – | – | – | – | – | Yes w/ lever rear Yes w/ lever Rear | Yes w/ lever side Yes w/ lever Side | – | – | – | – | – | – | – |
| Roller spacing and diameter | – | – | – | – | – | – | – | between rollers 200 mm x 76 mm Between Rollers 200 mm x 76 mm | between rollers 200 mm x 76 mm Between Rollers 200 mm x 76 mm | – | – | – | – | – | – | – |
| Wheels of Handling | – | – | – | – | – | – | – | Reinforced Ø150 mm w/ Bearings | – | – | – | – | – | – | – | – |
| Working length | – | – | – | – | – | – | – | – | 2500 mm | – | – | – | – | – | – | – |
| Working width | – | – | – | – | – | – | – | – | 600 mm | – | – | – | – | – | – | – |
| Rails | – | – | – | – | – | – | – | – | machined solid Ø150 mm w/ bearings | – | – | – | – | – | – | – |
| Length | – | – | – | – | – | – | – | – | – | Working 2200 mm | – | – | – | – | – | – |
| Height Minimum | – | – | – | – | – | – | – | – | – | 100 mm (loading manual/pallet truck) | – | – | – | – | – | – |
| Max Lifting 1000mm | – | – | – | – | – | – | – | – | – | Maximum 1000 mm | – | – | – | – | – | – |
| Capacity | – | – | – | – | – | – | – | – | – | Load 3000 kg (Pallet MDF/MDP) | – | – | – | – | – | – |
| Automatic Lifting - Yes, Photoelectric Sensor | – | – | – | – | – | – | – | – | – | Automatic Yes - Photoelectric Sensor | – | – | – | – | – | – |
| Lifting Pedal | – | – | – | – | – | – | – | – | – | Yes - raise/lower c/control Speed Yes - Raise / Lower w/ Control Speed | – | – | – | – | – | – |
| System | – | – | – | – | – | – | – | – | – | Anti-Esmagamento | – | – | – | – | – | – |
| Rollers | – | – | – | – | – | – | – | – | – | – | 1 × 57 mm | 5 × 57 mm | – | 5 × 57 mm | – | – |
| Head | – | – | – | – | – | – | – | – | – | – | Em 360° - lock any position In 360° - lock any position | Em 360°- lock any position In 360°- lock any position | – | – | – | – |
| Rubber Feet | – | – | – | – | – | – | – | – | – | – | Antiderrapante and Abertura mais Longa p/Maior Apoio | Antiderrapante and Apoio type Cruz p/Maior Estabilidade | – | Antiderrapante | 200 kg | – |
| Abre/Fecha System Abre/Fecha | – | – | – | – | – | – | – | – | – | – | easy transport and storage | – | – | – | – | – |
| Support | – | – | – | – | – | – | – | – | – | – | – | type Coluna/Mesa | – | – | – | – |
| Chapas MDF/MDP MDF/MDP Sheet Transporter | – | – | – | – | – | – | – | – | – | – | – | – | Length 2750 x Width 1850 Length 2750 x Width 1850 | – | – | – |
| Thickness Maximum | – | – | – | – | – | – | – | – | – | – | – | – | 30 mm | – | – | – |
| Min. Working Height | – | – | – | – | – | – | – | – | – | – | – | – | 800 mm | – | – | – |
| Max. working height | – | – | – | – | – | – | – | – | – | – | – | – | 950 mm | – | – | – |
| Epoxy paint | – | – | – | – | – | – | – | – | – | – | – | – | Yes - Frame Steel Reinforced | Yes - Frame Steel Reinforced | Independentes Independent | – |
| Handling | – | – | – | – | – | – | – | – | – | – | – | – | 04 pcs de Alta resistance | – | – | – |
| Type Table | – | – | – | – | – | – | – | – | – | – | – | – | – | 4feet c/Regulagem de Height Independentes | – | – |
| Length x Useful Width | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 1650 × 500 mm | – |
| Infeed / outfeed rollers, quantity and diameter | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 1100 mm 9 × 57 mm | – |
| Table | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 4feet c/Regulagem Height | – |
| Loading | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 200 kg |
| Panel Width | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 30—1750 mm |
| Panel Length | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 100—2750 mm |
| Panel thickness | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 10—60 mm |
Specifications are published on the model spec sheet — request it and we'll send the full data.
