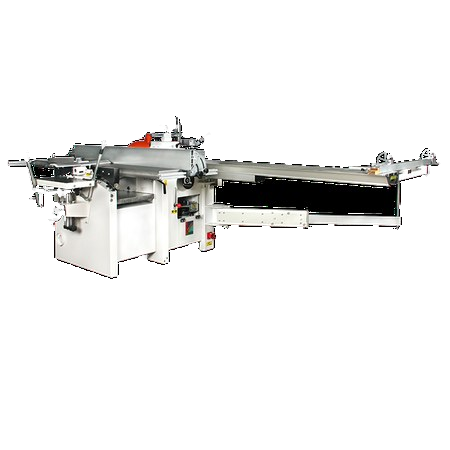

HTK-C400 · HTK-C300
1 models · HTK-MRT-25610
- Built for — planers, moulders, sanders, presses and finishing
- Tooling — blade and knife sizes matched to your material
- Units — metric and imperial dimensions on the same sheet
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
HTK-MRT-25610
| Model / Stock No. | HTK-MRT-25610 |
|---|---|
| Plaina Planer Working Tables | 400 x 1800mm |
| Cutterblock Diameter | 70mm |
| Cutterblock Rotation Speed | 5700rpm |
| Number of Knives | 3 |
| Desengrossadeira Thicknesser Working Table | 300 x 760mm |
| Feed Speed | 7m/min |
| Max. Working Height | 220mm |
| Circular Saw Working Table | 326 x 1112mm |
| Blade Diameter | 300mm |
| 90° Cutting Height at 90° | 100mm |
| Blade Inclination | 45° |
| Tupia Shaper Shaft Rotation Speed | 2000 / 3100 / 4000 / 7000rpm |
| Barreno Mortiser Working Table | 250 x 500 mm |
| Longitudinal Stroke | 205mm |
| Transversal Stroke | 95mm |
| Vertical Stroke | 90mm |
Specifications are published on the model spec sheet — request it and we'll send the full data including metric and imperial units.
