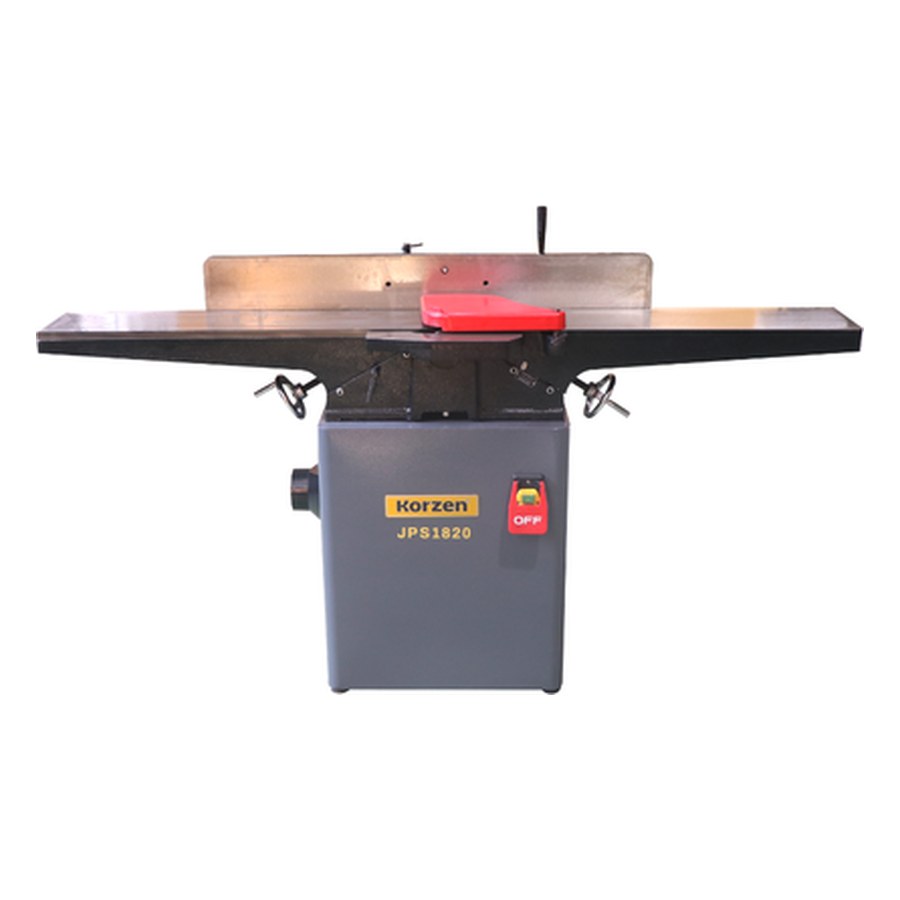

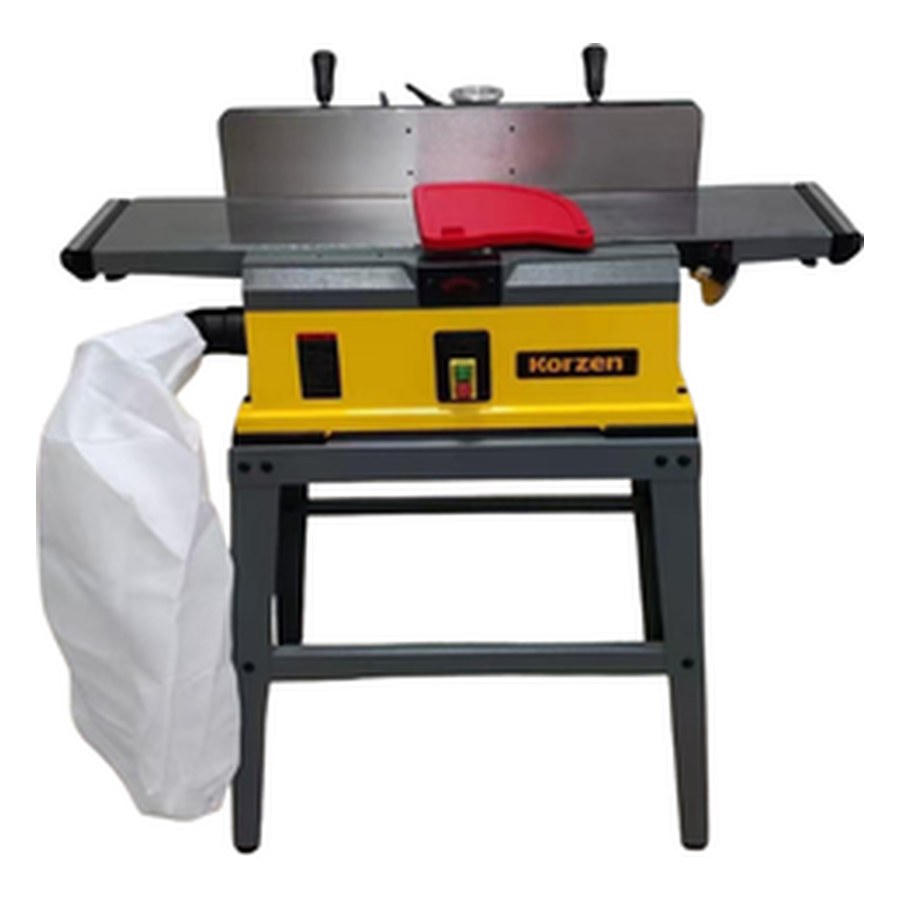

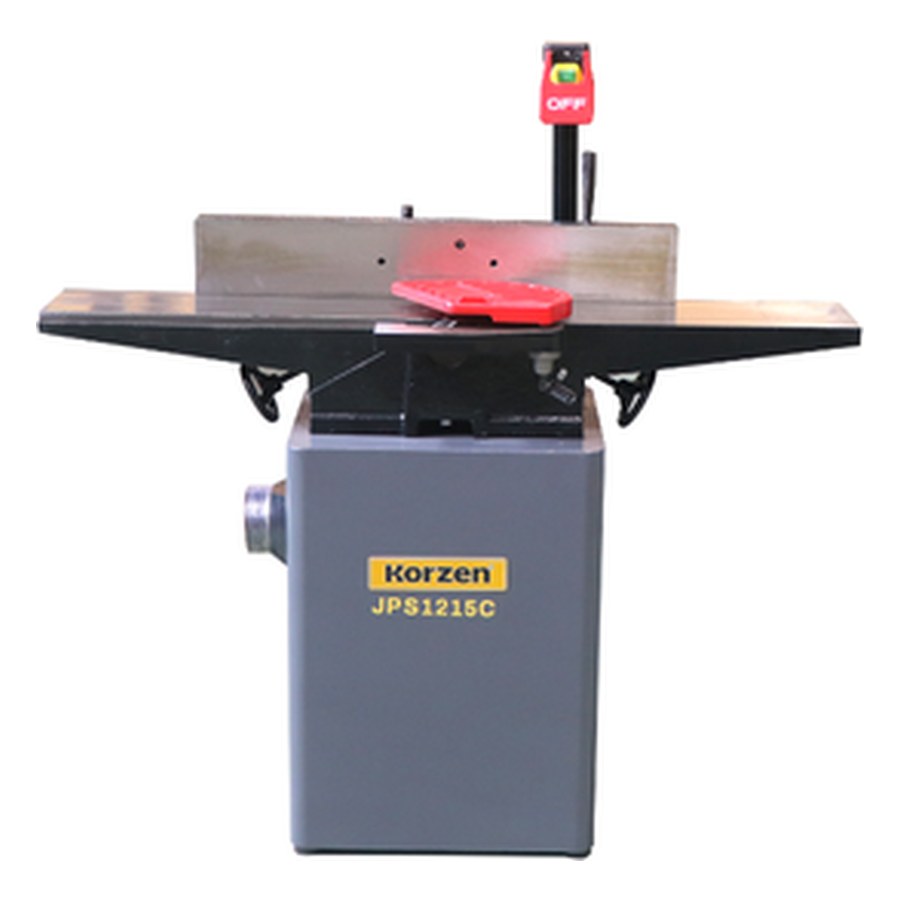

HTK-DSP-9020C · HTK-DSP-1215C
3 models · HTK-DSP-9020C · HTK-DSP-1215C · HTK-DSP-1820
- Built for — planing, moulding, sanding, pressing and finishing in joinery and furniture production
- Max. planing width — 150–204 mm
- Max. planing depth — 3–5 mm
- Knives — 3–4
- Dust ports sized for extraction, so the machine ducts straight into your system
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
HTK-DSP-9020C · HTK-DSP-1215C · HTK-DSP-1820
| Model / Stock No. | HTK-DSP-9020C | HTK-DSP-1215C | HTK-DSP-1820 |
|---|---|---|---|
| Table length | 900 mm | 1200 mm | 1800 mm |
| Table width | 208 mm | 152 mm | 204 mm |
| Max. planing width | 204 mm | 150 mm | Mesas 200 mm |
| Max. planing depth | 3 mm per pass | 5 mm per pass | – |
| Head | 18 Pastilhas - 20 × 14 × 2.0 mm | 3 knives - 150 × 20 × 2/2.5 mm | – |
| Roller diameter | 78 mm | 82 mm | – |
| Dust collector outlet | 1 × 2.5" (64 mm) with collection bag | 1800 W (2.4 HP) single-phase 220 V (10,000 rpm) | 1 × 4" (100 mm) |
| Main motor | 1.5 HP single-phase 220 V (4,000 rpm) | 2 HP single-phase 220 V or 2 HP three-phase 220/380 V (4,000 rpm) | 3 HP single-phase 220 V or 3 HP three-phase 220/380 V (4,000 rpm) |
| Max. useful width | 330 mm | 317 mm | – |
| Max. passage height | 152 mm | – | – |
| Min. thickness × length | 03 × 150 mm | – | – |
| Number of knives | 03 - 330 × 15 mm | – | 04 - 200 × 30 × 3 mm |
| Max. planing depth | 0.8/2.8 mm per pass | – | 8 mm per pass |
| Table dimensions | Main table 330 × 240 mm / 2 extensions | – | – |
| Pastilhado Head Pastilhado | – | 24 Pastilhas - 20 × 14 × 2.0 mm | – |
| Knife Roller Diameter | – | – | 94 mm |
Specifications are published on the model spec sheet — request it and we'll send the full data.
Not sure this is the right model?
Send us your material and sizes — we'll confirm the specification, tooling and container loading.
