HTK-RP630 · HTK-RP1000
2 models · HTK-AFI-065 · HTK-AFI-100A
- Built for — planers, moulders, sanders, presses and finishing
- Tooling — blade and knife sizes matched to your material
- Units — metric and imperial dimensions on the same sheet
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications

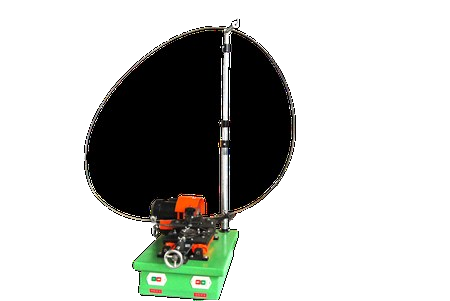

HTK-AFI-065 · HTK-AFI-100A
| Model / Stock No. | HTK-AFI-065 | HTK-AFI-100A |
|---|---|---|
| Movimentação Handling | Manual | Automático Automatic |
| Afiação Angle of Sharpening | 34 até 42° · | 34 até 42° |
| Rebolo Abrasivo Abrasive Wheel | Diâm. 125 x Height 45 x Hole 32mm Dia. 125 x Height 45 x Hole 32mm | Diâm. 125 Ø 125 |
| Afiação Rotation Speed of Sharpening | 2.850rpm 2,850rpm | 2.850rpm |
| Acessório p/ Afiação Accessory for Sharpening | Sim | – |
| Desbastes Angle and Grinding Adjustments | Sim | – |
| Main Motor | 1.5CV Trifásico 220/380V | 1.5 CV Trifásico 220/380V |
| Max. Working Width | 630mm | 1000mm |
| Peça Min. Processing Length | 350mm | – |
| Working Thickness | 2,5—110mm | 2,5—120mm |
| 1 Sanding Belt Speed | 20 m/s | – |
| 2 Sanding Belt Speed | 12 m/s | 18 m/s |
| Lixa Sanding Belt Size | 650 x 1920mm | 1020 x 2000mm |
| Conveyor Speed | 5—20 m/min | 6—38 m/min |
| Total Power | 1500W Trifásico 220V (Opc. 380V) | – |
| Working Pressure | 0,6MPa | 0,55MPa |
| Compressed Air Consumption | 0,5m³/h | 1.2 m³/min |
| Overall Dimensions | 1800 x 1100 x 2100mm | 2100 x 1650 x 1900mm |
| Net Weight | 1500kg | 2700kg |
Specifications are published on the model spec sheet — request it and we'll send the full data including metric and imperial units.
