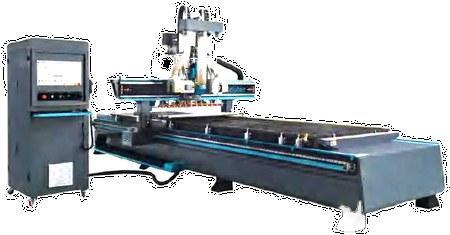

HTK-S12A
5 models · HTK-RCN-2813S12 · HTK-RCN-2813S12L · HTK-RCN-2813S20 …
- Built for — saws, sliding table saws, beam saws and cnc routers
- Tooling — blade and knife sizes matched to your material
- Units — metric and imperial dimensions on the same sheet
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
HTK-RCN-2813S12 · HTK-RCN-2813S12L · HTK-RCN-2813S20 · HTK-RCN-2813S4 · HTK-RCN-6013S12A
| Model / Stock No. | HTK-RCN-2813S12 | HTK-RCN-2813S12L | HTK-RCN-2813S20 | HTK-RCN-2813S4 | HTK-RCN-6013S12A |
|---|---|---|---|---|---|
| Router · Type | ATC 12 ferramentas | ATC 12 ferramentas · Linear | ATC 20 ferramentas | 4 spindles fixos | ATC 12 ferramentas · Mesa dupla c/ corte |
| Working Area (L x W x H) | 2.800 x 1.300 x 200 mm | 2.800 x 1.300 x 200 mm | 2.800 x 1.300 x 200 mm | 2.800 x 1.300 x 200 mm | 6.000 x 1.300 x 200 mm |
| Spindle | 9,0 kW ATC (refrig. a ar) | 9,0 kW ATC | 9,0 kW ATC | 4x 6,0 kW (refrig. a ar) | 9,0 kW ATC (refrig. a ar) |
| Inversor Inverter | 11 kW | 11 kW | 11 kW | 7,5 kW | 11 kW |
| Control System | LNC | WEIHONG | SYNTEC | MW2200 / LNC | LNC |
| Vacuum Pump | 7,5 kW | 7,5 kW | 7,5 kW | 7,5 kW | 11 kW |
| Weight | 3.600 kg | 3.700 kg | 3.800 kg | 3.500 kg | 4.500 kg |
| Overall Dimensions | – | 4.200 x 2.800 x 2.300 mm | 4.400 x 2.500 x 2.300 mm | – | – |
| Acionamento Drive System | – | – | – | Servo 1,5 kW | – |
| Max. Rapid / Working Speed | – | – | – | 80 / 25 m/min | – |
| Repeatability | – | – | – | ±0,01 mm | – |
| Dust Collector | – | – | – | 5,5 kW | – |
| Air Pressure | – | – | – | 0,6–0,8 MPa | – |
| Voltage | – | – | – | 380 V Trifásico 50/60 Hz | – |
| Cutting Motor / Blade | – | – | – | – | 2x 5,5 kW / ø255 mm |
Specifications are published on the model spec sheet — request it and we'll send the full data including metric and imperial units.
