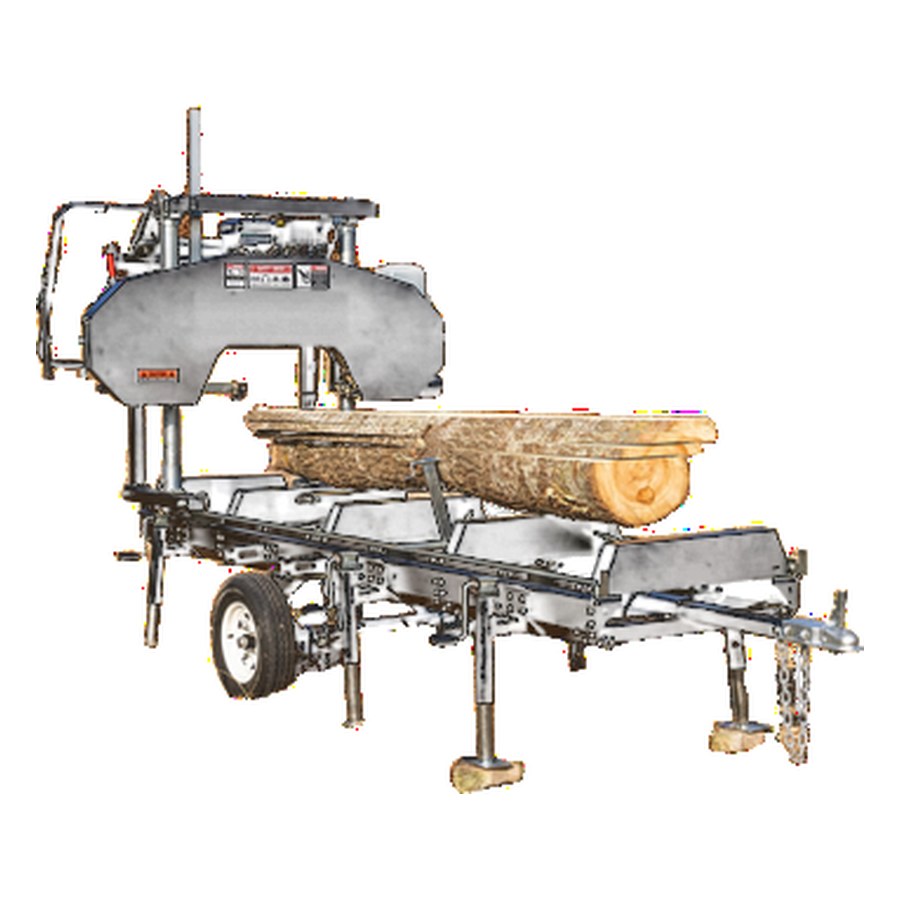

HTK-SER-28 · HTK-SER-36
3 models · HTK-SER-28 · HTK-SER-36 · HTK-SER-44
- Built for — milling logs into boards and slabs on site, without hauling timber to a mill
- Cutting capacity — 640–1,050 mm
- Blade linear speed — 1,080 m/min
- Total weight — 422–620 kg
- Track extensions available for longer logs
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
HTK-SER-28 · HTK-SER-36 · HTK-SER-44
| Model / Stock No. | HTK-SER-28 | HTK-SER-36 | HTK-SER-44 |
|---|---|---|---|
| Max. log diameter | 720 mm | 920 mm | 1120 mm |
| Max. cutting height | 640 mm | 850 mm | 1050 mm |
| Max. cutting width | 680 mm | 880 mm | 1080 mm |
| Max. cutting thickness | 280 mm | 300 mm | 320 mm |
| Max. Cutting Length | 3000 mm | – | – |
| Blade Linear Speed | 18 m/s | – | – |
| Saw blade specification | 3930 × 35 mm | 4350 × 35 mm | 4770 × 35 mm |
| Wheel Rotating Speed | 727 rpm | – | – |
| Flywheel Size | 476 × 24 mm | – | – |
| Track length | 4000 mm | – | – |
| Total weight | 422 kg | 520 kg | 620 kg |
| Overall dimensions | 4000 × 2100 × 2300 mm | 4000 × 2300 × 2500 mm | 4000 × 2500 × 2700 mm |
| Min. Cutting Height | 40 mm | – | – |
| Blade Speed | 23 m/s | – | – |
| Saw blade size | 6250 × 80 mm | 7050 × 80 mm | 7850 × 80 mm |
| Cilindros Cylinder Quantity | 8 | – | – |
| Auto Feed Speed | 4—20 m/min | – | – |
| Diesel engine power | 22 hp | 27 hp | 36 hp |
Specifications are published on the model spec sheet — request it and we'll send the full data.
