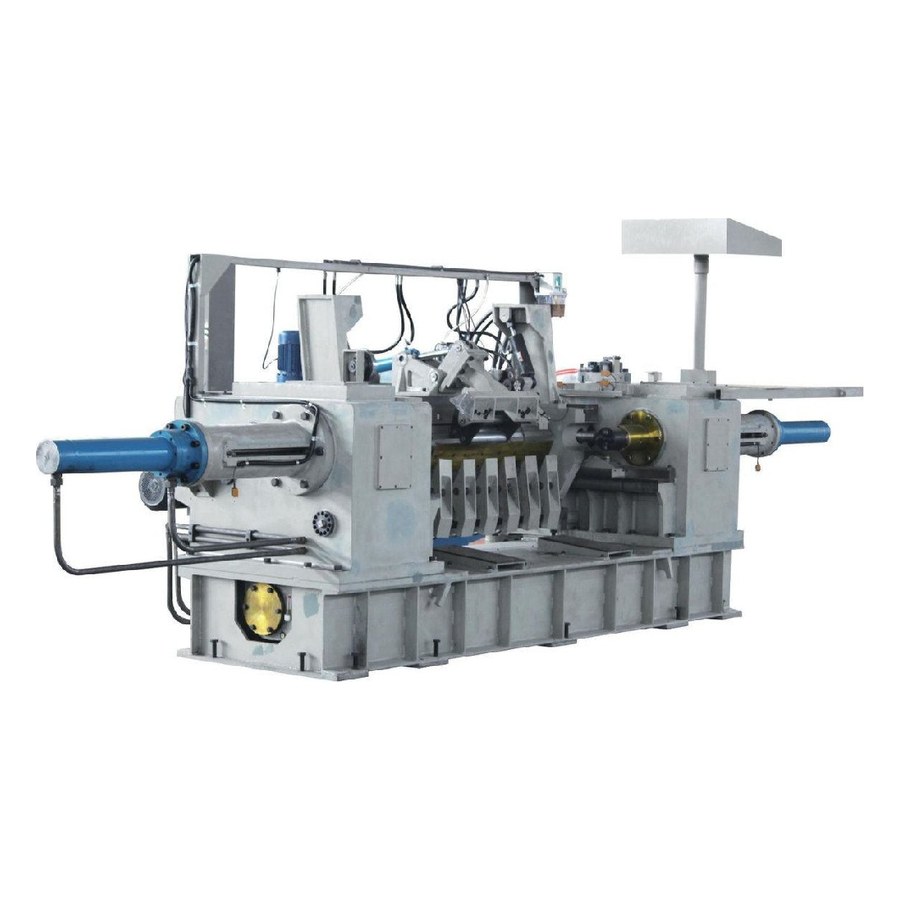

Hydraulic Single Spindle Rotary Peeling Lathe · BQ1226/8F2
1 models · HTK-BQ1226/8F2
- Built for — apps.10
- Tooling — blade and knife sizes matched to your material
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
| Model / Stock No. | HTK-BQ1226/8F2 |
|---|---|
| Max. peeling diameter | 0800mm Φ800mm Φ600mm Φ600mm |
| Final roller diameter | 0150mm Φ150mm Φ140mm Φ140mm |
| Shaft (mandrel) diameter | Φ130mm Φ130mm Φ130mm Φ130mm |
| Shaft speed | 0~160rpm 0~160rpm 0~160rpm 0~160rpm |
| Knife carriage rapid advance/return speed | 1.8m/Min 1.8m/Min 1.8m/Min 1.8m/Min |
| Main motor power | 75kw 45kw、55kw 67kw 45kw |
| Rapid feed motor | 4kw 4kw 4kw 4kw |
| Blade opening servo motor | 1.5kw 1.5kw 1.5kw 1.5kw |
| Electric motor — backlash angle | 0.75kw 0.75kw 0.75kw 0.75kw |
| Hydraulic unit motor power | 7.5kw 7.5kw 7.5kw 7.5kw |
| Total power | 91.75kw 59.85kw 83.75kw 59.85kw |
| Net weight | 16000kg 13000kg 15200kg 12200kg |
Specifications are published on the model spec sheet — request it and we'll send the full data.
Not sure this is the right model?
Send us your material and sizes — we'll confirm the specification, tooling and container loading.
Get a quote
