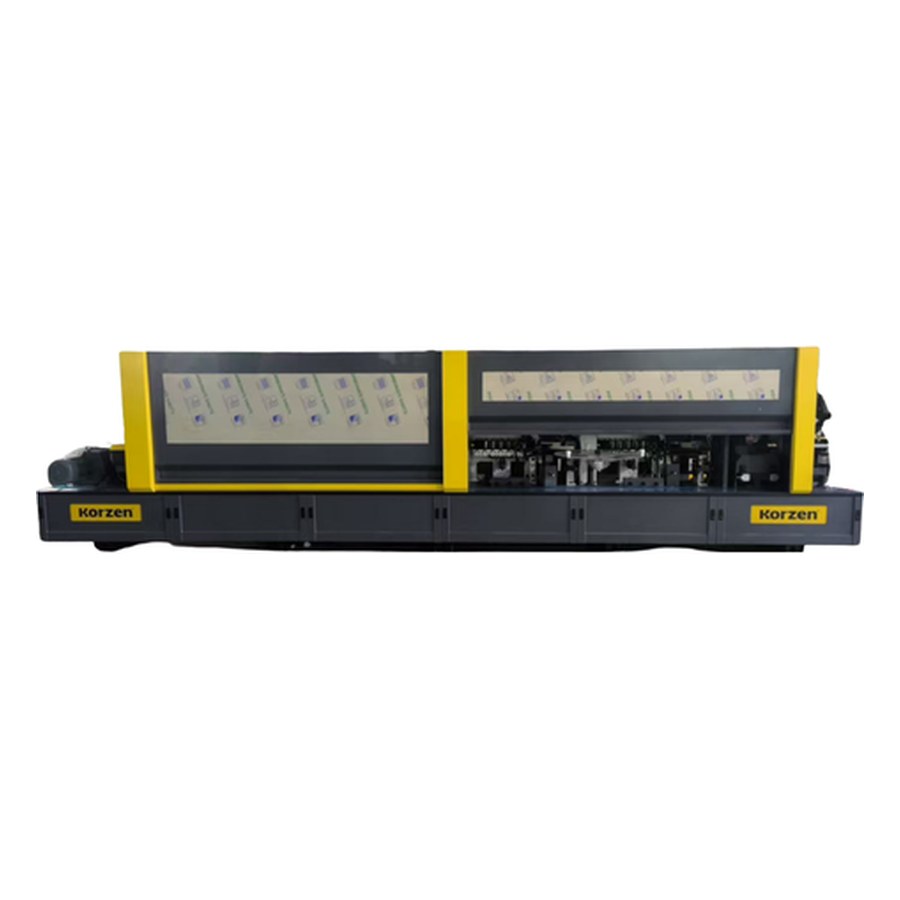

Industrial edge banders
7 models · HTK-CBD-1363M · HTK-CBD-1464M · HTK-CBD-152C …
- Built for — continuous high-volume banding with trimming, scraping and buffing in one pass
- Panel thickness — 18–60 mm
- Feed speed — 7–26 m/min
- Drive power — 13.6–48.2 kW
- PUR-capable glue system — a near-invisible joint that resists heat and moisture
- EVA hot-melt glue pot — low running cost and simple maintenance
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications

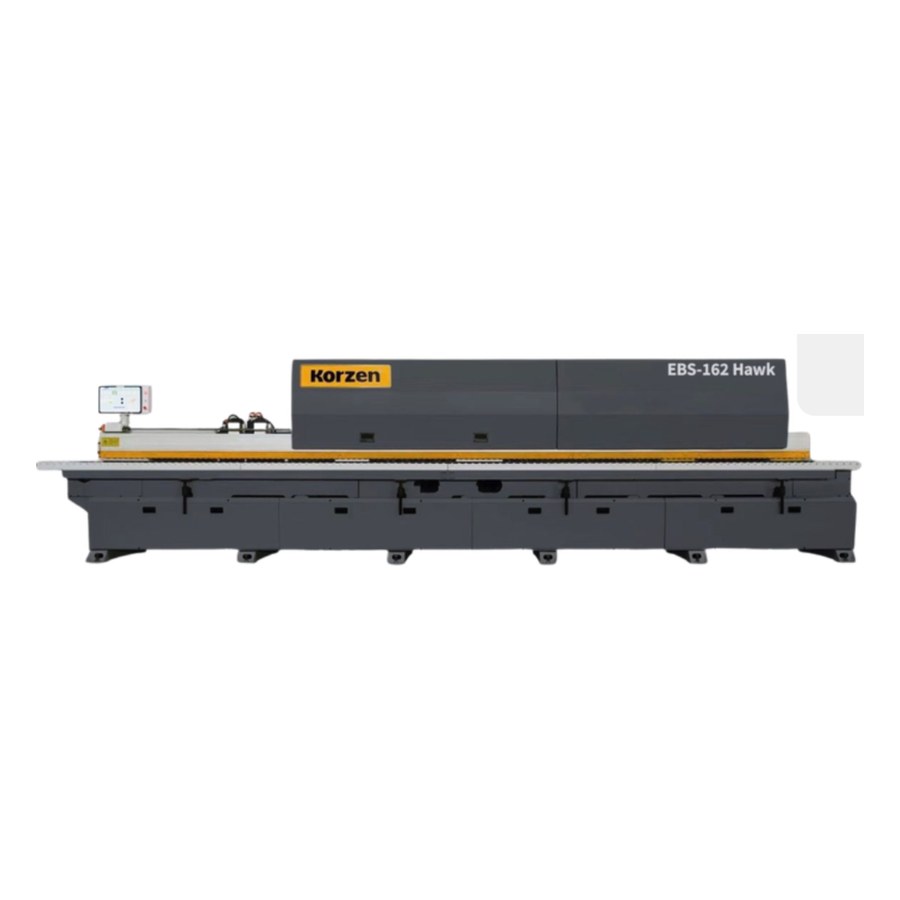

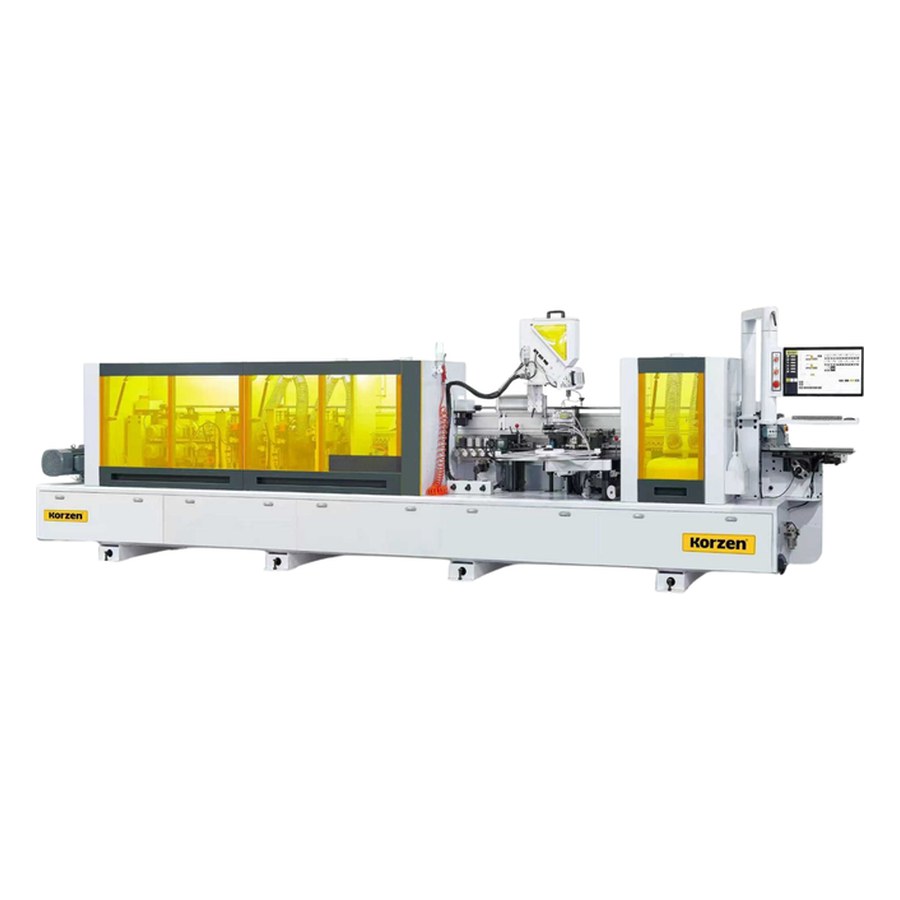

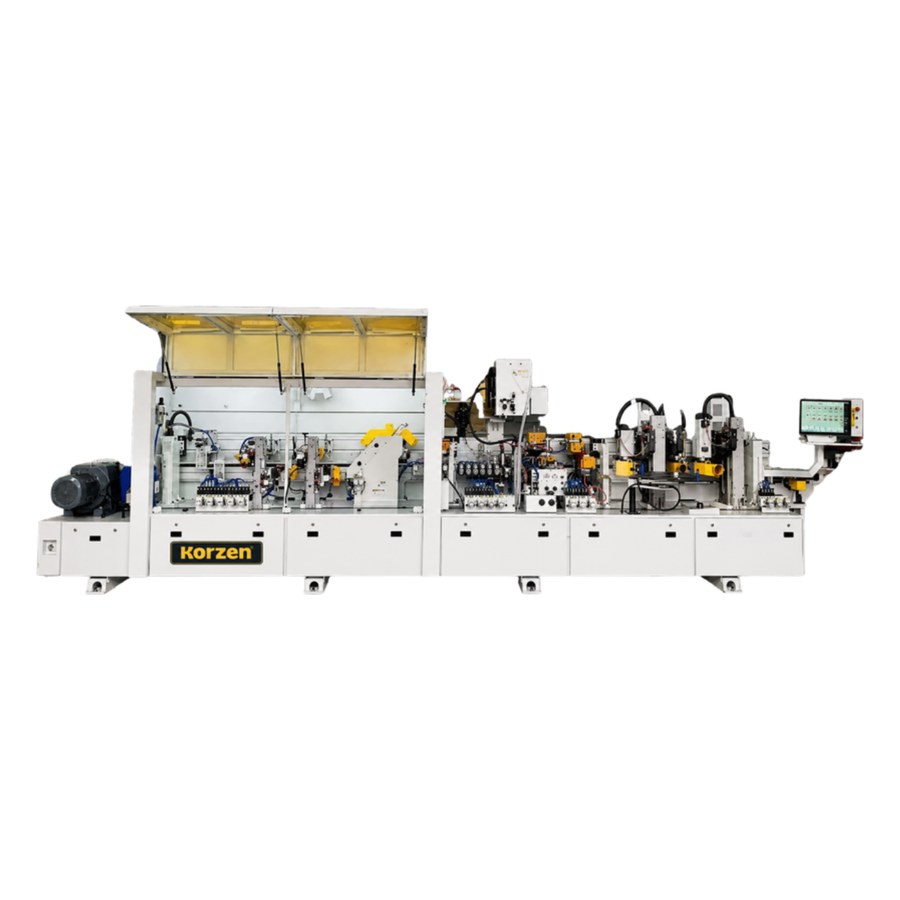

HTK-CBD-1363M · HTK-CBD-1464M · HTK-CBD-152C · HTK-CBD-162 · HTK-CBD-183 · HTK-CBD-451 · HTK-CBD-452
| Model / Stock No. | HTK-CBD-1363M | HTK-CBD-1464M | HTK-CBD-152C | HTK-CBD-162 | HTK-CBD-183 | HTK-CBD-451 | HTK-CBD-452 |
|---|---|---|---|---|---|---|---|
| Configuration | Double gluing · 2 polishing units | Double gluing · 2 polishing units | Concave parts · 2 glue pots | Profiles and straight edges · profile shapers | Profiles and straight edges · profile shapers | 45° shaper · high output | 45° shaper · high output |
| Edge band type | 0.45–3.0 mm | 0.45–3.0 mm | 0.45 mm | 0.45 mm profiles · 0.45/1.0 mm straight | 0.45 mm profiles · 0.45/1.0 mm straight/45° | 0.45–1.0 mm | 0.45–1.0 mm |
| Panel height | 10–60 mm | 10–60 mm | 15/18 mm (19/22) | 18 mm (J 60 · C 35 · reta 30) | 18 mm (J 60 · w/ 45° 35 · reta 30) | 15/18/25 mm (edge tape 25/30/38) | 15/18/25 mm (edge tape 25/30/38) |
| Min. panel width × length | 30 × 60 mm | 30 × 60 mm | 100 × 275 mm | 150 × 300 mm | 150 × 300 mm | 100 × 300 mm | 100 × 300 mm |
| Conveyor speed | 18, 22 & 26 m/min | 18, 22 & 26 m/min | 7 m/min | 8 m/min | 8 m/min | 8 & 10 m/min | 8 & 10 m/min |
| Glue pot | Hybrid upper pot EVA/PO + EVA/PUR with 5 kg pre-melter | Hybrid upper pot EVA/PO + EVA/PUR with 5 kg pre-melter | 2x EVA/PO (upper and lower) | Hybrid upper pot, EVA / PO / PUR | EVA/PO/PUR | Hybrid upper pot, EVA / PO / PUR | Hybrid upper pot, EVA / PO / PUR |
| Control panel | Monitor 21" + PC industrial w/ Wi-Fi | Monitor 21" + PC industrial w/ Wi-Fi | Touch 21" + PC industrial | Touch 14" · monitor 21" | Touch 14" | Touch 7" | Touch 7" |
| Dust outlet | 5 × 4" | 5 × 4" | 6 × 4" | 6 × 4" | 10 × 4" | 4" (100 mm) | 5 × 4" |
| Drive power | 19.5 kW · three-phase 380 V | 19.5 kW · three-phase 380 V | 34.0 kW · three-phase 380 V (optional 220 V) | 42.7 kW · three-phase 380 V (optional 220 V) | 48.2 kW · three-phase 380 V (optional 220 V) | 13.6 kW · three-phase 220 V (optional 380 V) | 19.0 kW · three-phase 220 V (optional 380 V) |
| Dimensions (L × W × H) | – | – | 8,300 × 1,000 × 1,950 mm (2,900 kg) | 7,300 × 1,150 × 1,850 mm (2,500 kg) | 8,900 × 1,150 × 1,850 mm (3,800 kg) | 4,400 × 890 × 1,700 mm (1,300 kg) | 5,400 × 950 × 1,700 mm (1,500 kg) |
Specifications are published on the model spec sheet — request it and we'll send the full data.
Not sure this is the right model?
Send us your material and sizes — we'll confirm the specification, tooling and container loading.
