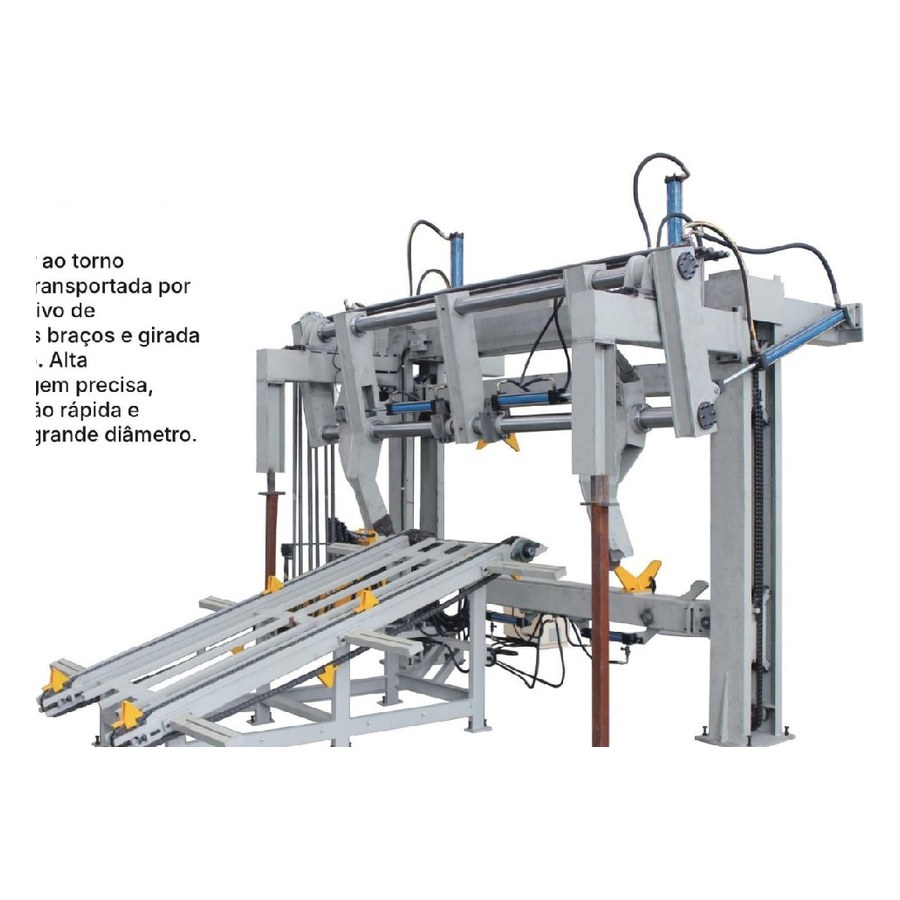

Log centering & charging machines · BD1515/26B
2 models · HTK-BD1515/26B · HTK-BDS1308/27B
- Built for — centering and charging logs into the veneer lathe for maximum yield
- Tooling — blade and knife sizes matched to your material
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
| Model / Stock No. | HTK-BD1515/26B | HTK-BDS1308/27B |
|---|---|---|
| Max. centering diameter | 800mm 800mm 600mm 600mm | 800mm 800mm 600mm 600mm |
| Min. centering diameter | 200mm 200mm 180mm 180mm | 200mm 200mm 180mm 180mm |
| Max. log length | 2700mm 1400mm 2700mm 1400mm | 2700mm 1400mm 2700mm 1400mm |
| Min. log length | 1900mm 900mm 1900mm 900mm | 1900mm 900mm 1900mm 900mm |
| Log transport speed | 6.4m/Min 6.4m/Min 6.4m/Min 6.4m/Min | 6.4m/Min 6.4m/Min 6.4m/Min 6.4m/Min |
| Transport motor power | 4kw 3kw 3kw 3kw | 4kw 3kw 3kw 3kw |
| Hydraulic unit motor power | 22kw 22kw 11kw 11kw | 22kw 22kw 11kw 11kw |
| Total power | 26KW 25 KW 14Kw 14Kw 10 | 26KW 25 KW 14Kw 14Kw 10 |
| Machine weight | 7500kg 6800kg 6600kg 6000kg | 7500kg 6800kg 6600kg 6000kg |
Specifications are published on the model spec sheet — request it and we'll send the full data.
