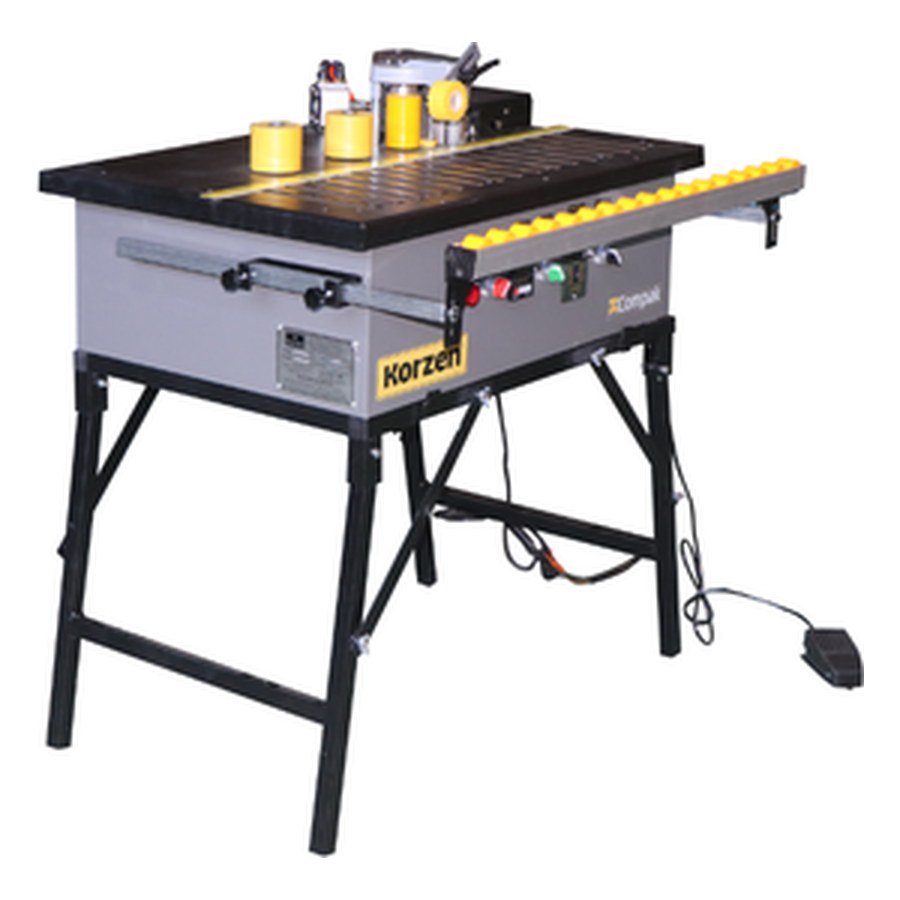

Manual & compact edge banders
4 models · HTK-CBD-151 · HTK-CBD-153 · HTK-CBD-153A …
- Built for — curved and short-run edge banding where a full automatic line is not justified
- Panel thickness — 50 mm
- Drive power — 1.2–1.5 kW
- Min. panel width — 30 mm
- EVA hot-melt glue pot — low running cost and simple maintenance
- Variable-frequency drive — speed set for the material, no belt changes
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
HTK-CBD-151 · HTK-CBD-153 · HTK-CBD-153A · EBM-153

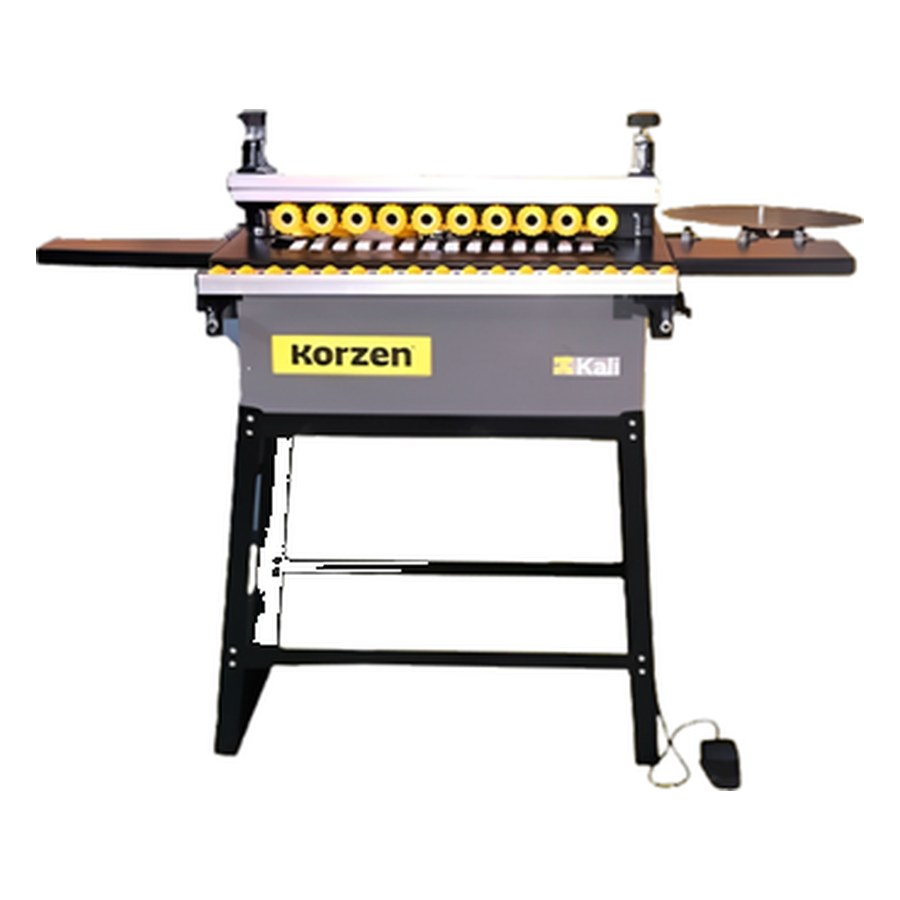

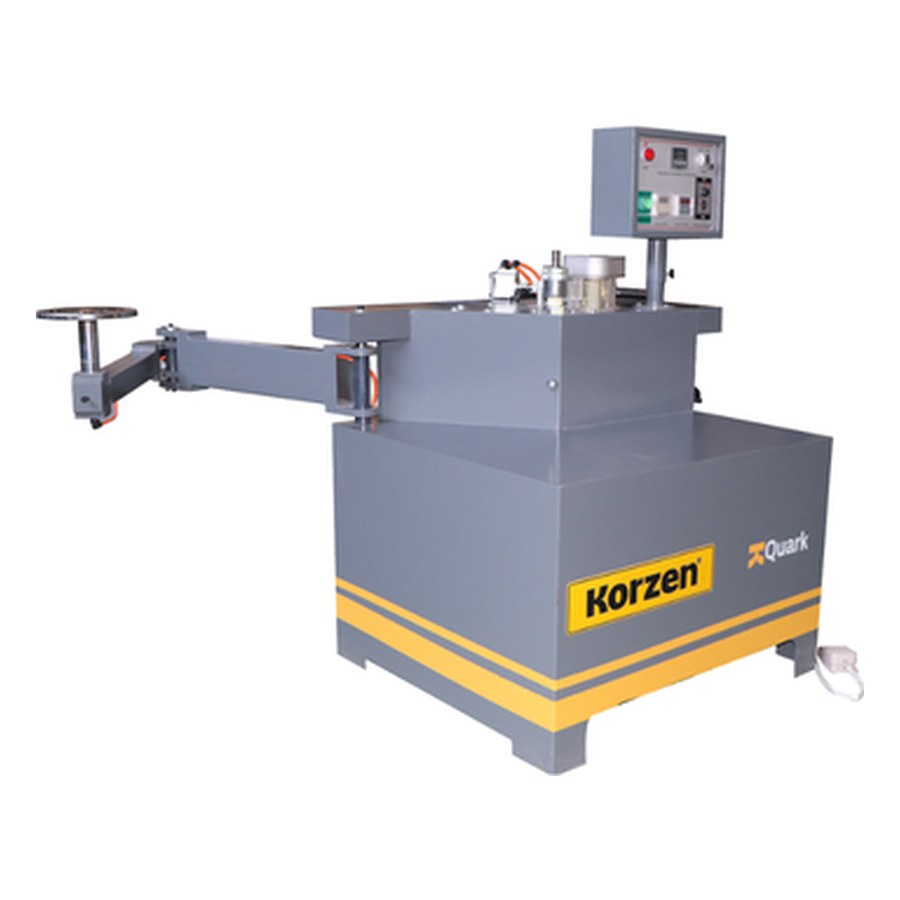

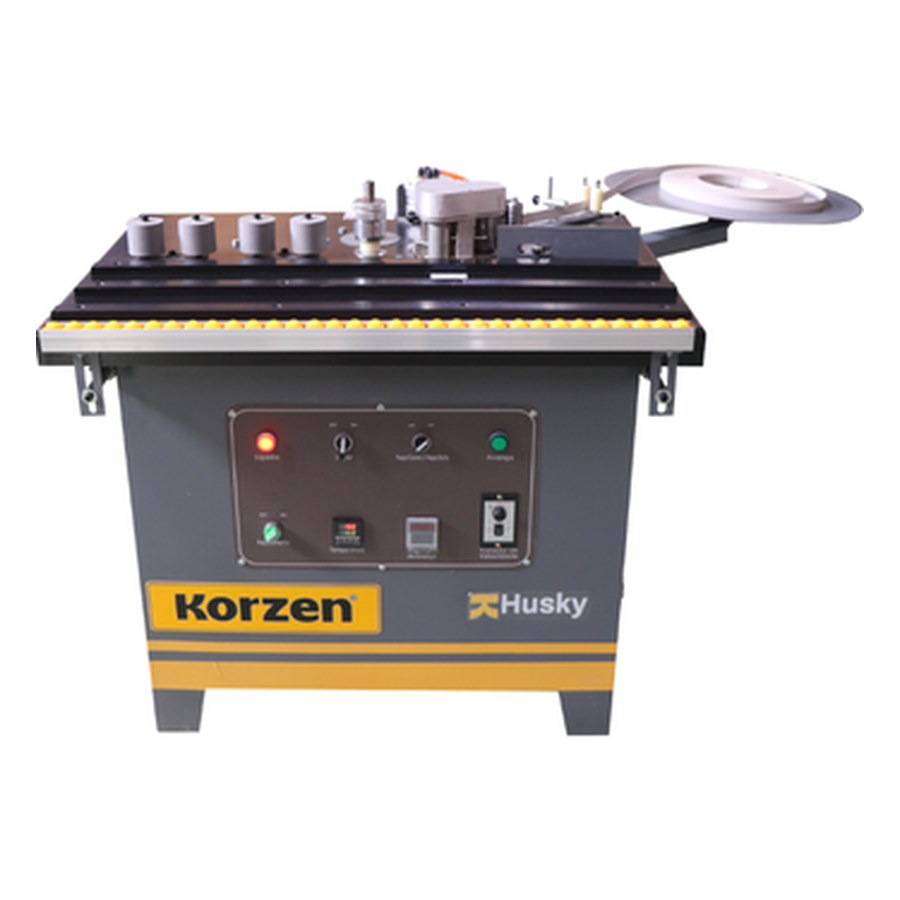

| Model / Stock No. | HTK-CBD-151 | HTK-CBD-153 | HTK-CBD-153A | EBM-153 |
|---|---|---|---|---|
| Functions | Gluing straight and curved parts | Gluing straight parts | Gluing curved parts | gluing de workpieces retas and curved |
| Edge band type | PVC / paper 0.45–1.0 mm | PVC / paper 0.45–1.0 mm | PVC 0.45–3.0 mm | PVC 0.45–3.0 mm |
| Panel height | 6–50 mm | – | – | – |
| Variable speed | 1–10 m/min | – | – | – |
| Band Cutting | Pneumatic | – | – | – |
| Glue pot | 1,000 ml EVA hot-melt, 140–180 °C | 1,000 ml EVA hot-melt, 140–180 °C | 1,000 ml EVA hot-melt, 145–180 °C | 1,000 ml EVA (hotmelt) 145–180 °C |
| Control panel | Front, complete 24 V | Upper | Upper | Completo 24 V |
| Drive power | 1.2 kW · 110/220 V single-phase | 1.5 kW · 110/220 V single-phase | 1.5 kW · 220 V single-phase or 220/380 V three-phase | 1.5 kW · 220 V single-phase or 220/380 V three-phase |
| Min. panel width | – | 30 mm (ripados) | – | – |
Specifications are published on the model spec sheet — request it and we'll send the full data.
