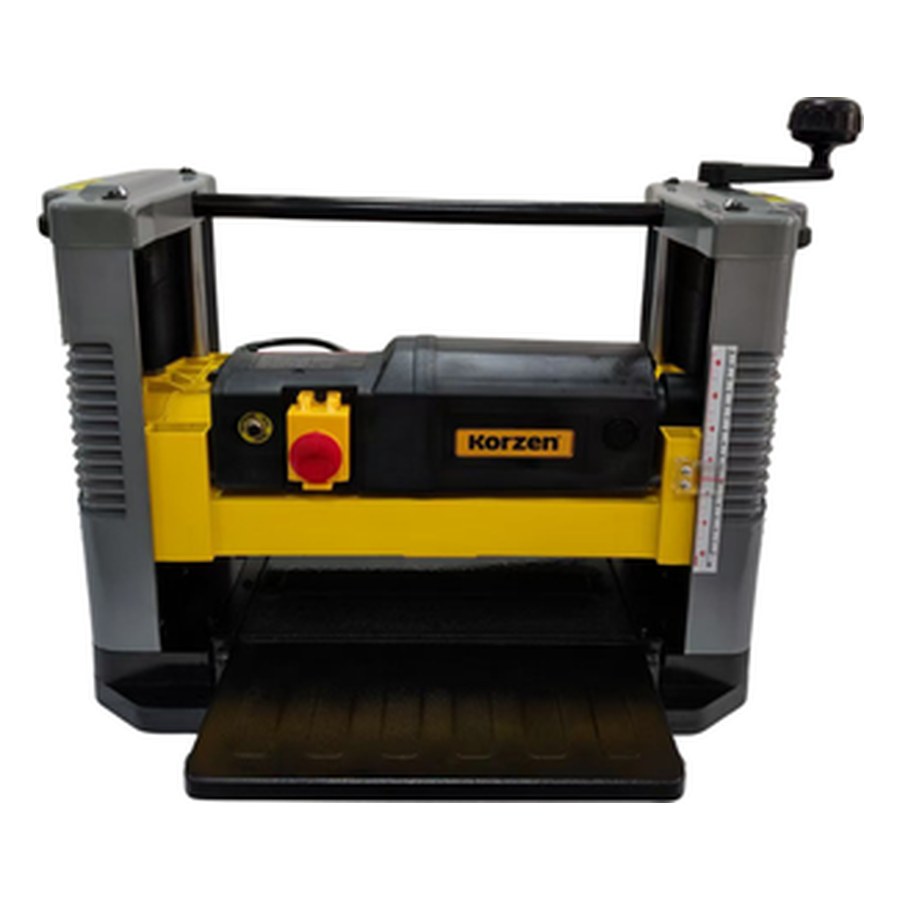

Portable planers
2 models · JPB-32C · JPB-333
- Built for — short runs and small-section work in joinery and carpentry shops
- Working thickness — 150 mm
- Max. passage height — 152 mm
- Max. working width — 317 mm
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
JPB-32C · JPB-333
| Model / Stock No. | JPB-32C | JPB-333 |
|---|---|---|
| Max. useful width | 317 mm | 330 mm |
| Motor | 2000 W - single-phase 110 V or 220 V (8,500 rpm) Mesa de GRANITO | 2200 W - single-phase 110 V or 220 V (8,500 rpm) |
| Head Pastilhado | 24 Pastilhas - 20 × 14 × 2.0 mm | – |
| Max. passage height | – | 152 mm |
| Min. thickness × length | – | 03 × 150 mm |
| Number of knives | – | 03 - 330 × 15 mm |
| Max. planing depth | – | 0.8/2.8 mm per pass |
Specifications are published on the model spec sheet — request it and we'll send the full data.
