SBC-065 · SBC-100A
2 models · HTK-AFI-065 · HTK-AFI-100A
- Built for — planing, moulding, sanding, pressing and finishing in joinery and furniture production
- Motor power — 1.12 kW
- Feed speed — 20–38 m/min
- Total weight — 1,500–2,700 kg
- Automatic feed and lifting — consistent infeed at production rates
- Sanding belts with adjustable speed and pressure for veneer and solid wood
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications

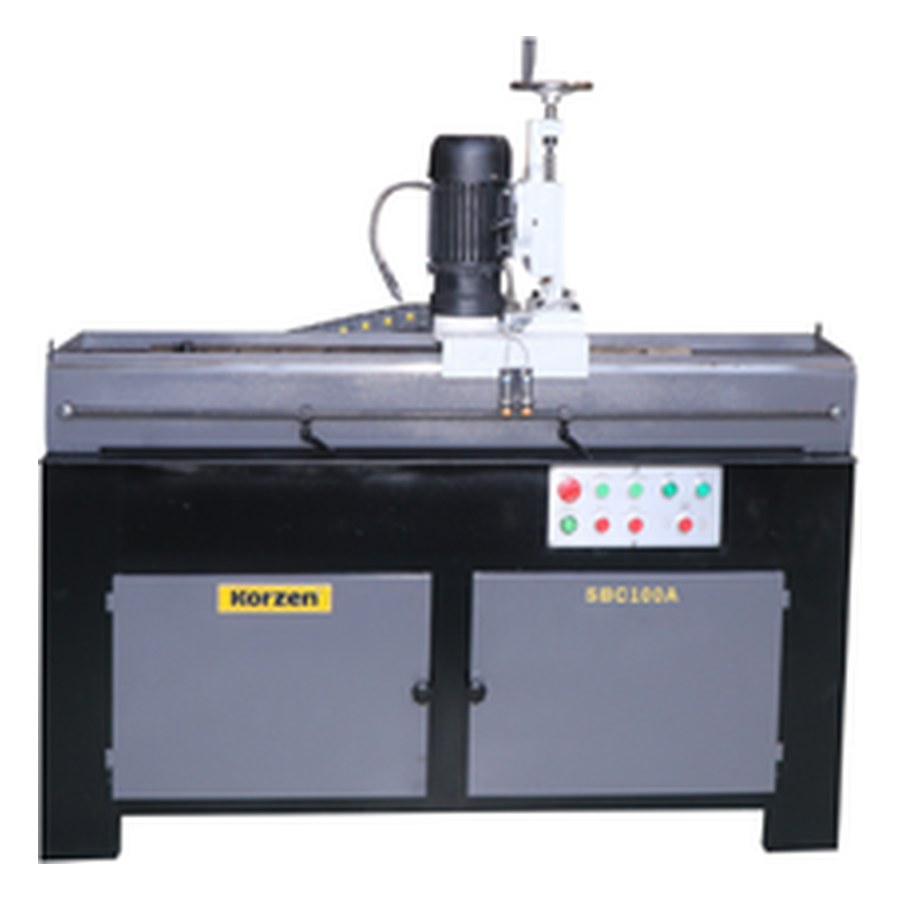

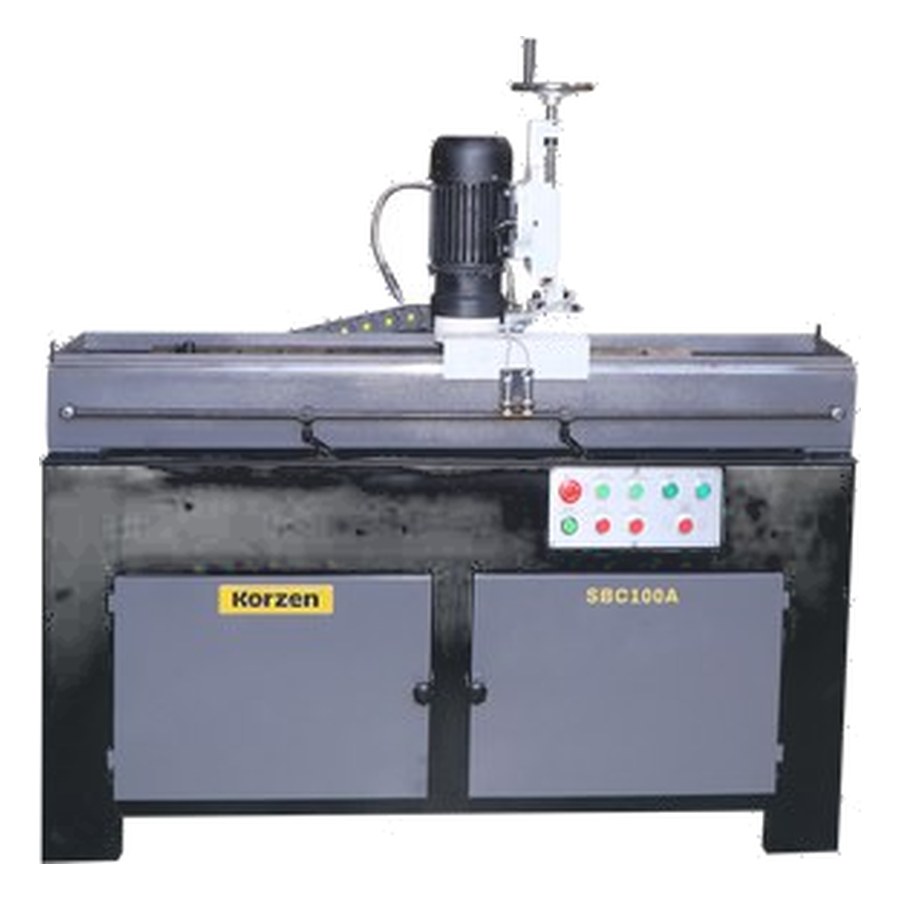

HTK-AFI-065 · HTK-AFI-100A
| Model / Stock No. | HTK-AFI-065 | HTK-AFI-100A |
|---|---|---|
| Handling | Manual | Automatic |
| Sharpening angle | 34 up to 42° | 34 up to 42° |
| Abrasive wheel | 125 × 45 × 32 mm bore | Ø 125 mm |
| Sharpening speed | 2,850 rpm | 2,850 rpm |
| Sharpening Accessory | Yes | – |
| Angle and Grinding Adjustments | Yes | – |
| Main motor | 1.5 HP three-phase 220/380 V | 1.5 HP three-phase 220/380 V |
| Max. working width | 630 mm | 1000 mm |
| Min. Processing Length | 350 mm | – |
| Working thickness | 2.5—110 mm | 2.5—120 mm |
| 1 Sanding Belt Speed | 20 m/s | – |
| Sanding belt speed (2 belts) | 12 m/s | 18 m/s |
| Sanding belt size | 650 × 1920 mm | 1020 × 2000 mm |
| Conveyor speed | 5—20 m/min | 6—38 m/min |
| Total power | 1500 W three-phase 220 V (optional 380 V) | – |
| Working pressure | 0.6 MPa | 0.55 MPa |
| Compressed air consumption | 0.5 m³/h | 1.2 m³/min |
| Overall dimensions | 1800 × 1100 × 2100 mm | 2100 × 1650 × 1900 mm |
| Net weight | 1500 kg | 2700 kg |
Specifications are published on the model spec sheet — request it and we'll send the full data.
Not sure this is the right model?
Send us your material and sizes — we'll confirm the specification, tooling and container loading.
