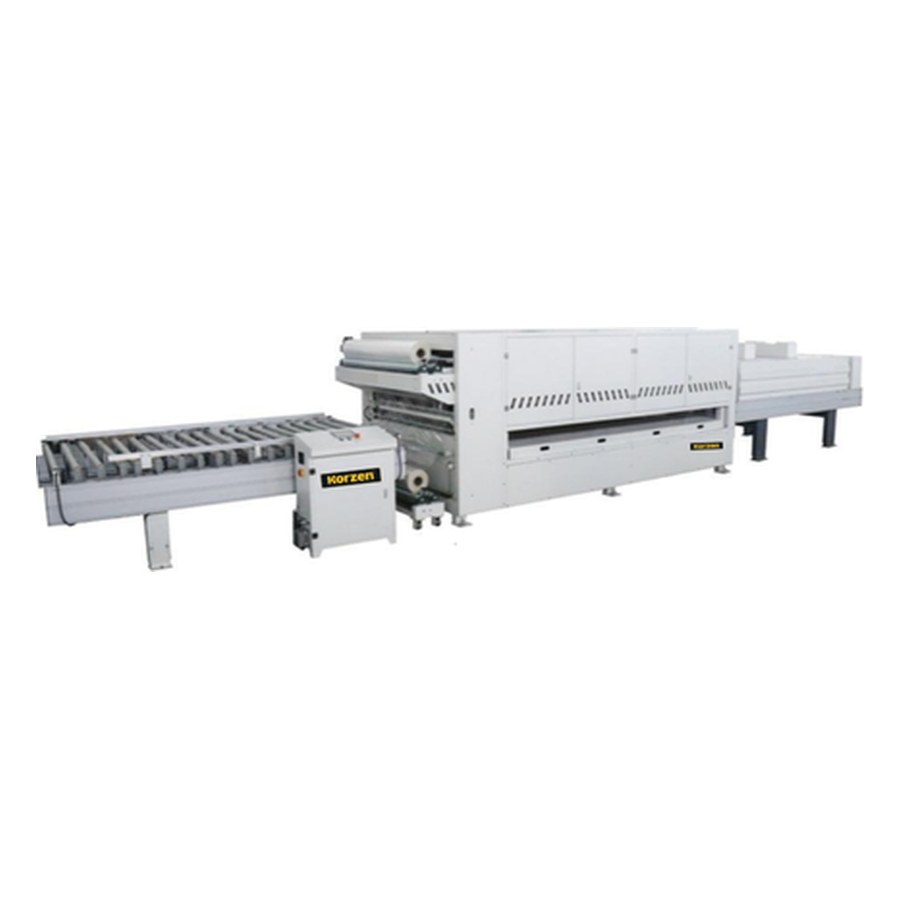

Shrink wrapping machines
2 models · HTK-EMB-1020AL · HTK-EMB-1335AL
- Built for — packaging and surface finishing at the end of the production line
- Tooling — blade and knife sizes matched to your material
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
HTK-EMB-1020AL · HTK-EMB-1335AL
| Model / Stock No. | HTK-EMB-1020AL | HTK-EMB-1335AL |
|---|---|---|
| Max. working width | 1000 mm | 1300 mm |
| Max. working height | 200 mm (optional 350 mm) | – |
| Infeed table | 3000 × 1000 mm | 3000 × 1300 mm |
| Film coils | 600 up to 1150 mm | 600 up to 1450 mm |
| Table between machines | 3000 × 1000 mm | 3000 × 1300 mm |
| Adjustable speed | Up to 95 rpm Up to 95 rpm | – |
| Outfeed table | 3000 × 1000 mm with rollers | 3000 × 1300 mm with rollers |
| Overall dimensions | 9.80 m long x 2.80 m wide | 15.20 m long x 3.20 m wide |
Specifications are published on the model spec sheet — request it and we'll send the full data.
Not sure this is the right model?
Send us your material and sizes — we'll confirm the specification, tooling and container loading.
Get a quote
