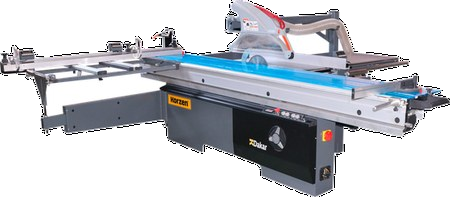

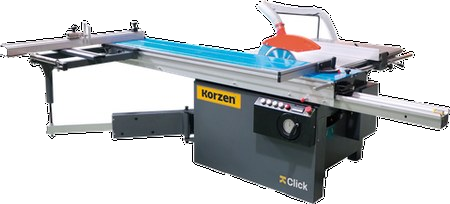

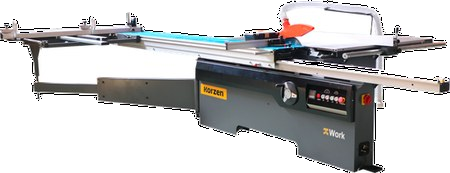

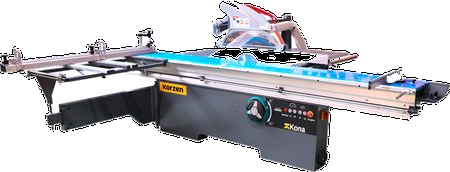

SLIDING TABLE SAWS
5 models · HTK-ESQ-1632 · HTK-ESQ-2238 · HTK-ESQ-3038 …
- Built for — saws, sliding table saws, beam saws and cnc routers
- Tooling — blade and knife sizes matched to your material
- Units — metric and imperial dimensions on the same sheet
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
HTK-ESQ-1632 · HTK-ESQ-2238 · HTK-ESQ-3038 · HTK-ESQ-3240 · HTK-ESQ-3244
| Model / Stock No. | HTK-ESQ-1632 | HTK-ESQ-2238 | HTK-ESQ-3038 | HTK-ESQ-3240 | HTK-ESQ-3244 |
|---|---|---|---|---|---|
| Sliding Table Travel | 1.600 mm | 2.200 mm | 3.000 x 380 mm | 3.200 x 400 mm | 3.200 x 440 mm |
| Reto Straight Cutting Height | 80 mm | 80 mm | 95 mm | 95 mm | 110 mm |
| 45° 45° Cutting Height | 60 mm | 60 mm | 70 mm | 70 mm | 85 mm |
| Fixa Cutting Width at Fixed Table | 620 mm | 1.000 mm | 1.200 mm | 1.200 mm | 1.300 mm |
| Max. Blade Diameter | 250 mm | 250 mm | 300 mm | 300 mm | 350 mm |
| Inclinável 45° 45° Tilting Arbor | Sim · Yes | – | – | – | – |
| Blade Rise & Fall | Manual | Manual | Manual | Manual | Automático · Motorised |
| Dust Outlet | 1x 2,5" (64 mm) | 1x 2,5" + 1x 4" | 1x 2,5" + 1x 4" | 2x 4" (100 mm) | 2x 4" (100 mm) |
| Main Motor | 3,0 CV Monofásico 220 V | 3,0 CV Monofásico 220 V | 4,0 CV Monofásico 220 V ou 5,0 CV Trifásico 220/380 V | 4,0 CV Monofásico 220 V ou 5,0 CV Trifásico 220/380 V | 7,5 CV Trifásico 220/380 V |
| Scoring Motor | – | 1,0 CV Monofásico 220 V | 1,0 CV Mono 220 V ou Trif. 220/380 V | 1,0 CV Mono 220 V ou Trif. 220/380 V | 1,5 CV Trifásico 220/380 V |
Specifications are published on the model spec sheet — request it and we'll send the full data including metric and imperial units.
See it running
1 video
Not sure this is the right model?
Send us your material and sizes — we'll confirm the specification, tooling and container loading.
