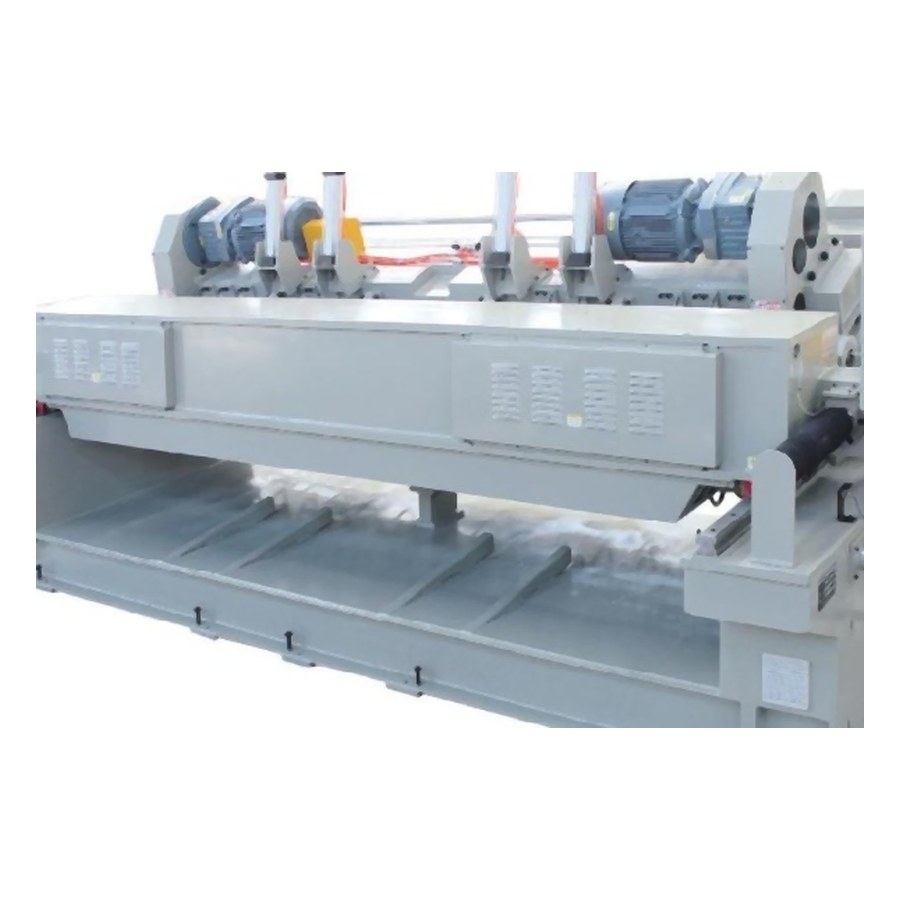

Spindleless CNC lathe with clipper · BXQJ1827/5B
1 models · HTK-BXQJ1827/5B
- Built for — peeling small-diameter logs without a spindle, maximising timber yield
- Tooling — blade and knife sizes matched to your material
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
| Model / Stock No. | HTK-BXQJ1827/5B |
|---|---|
| Max. peeling length | 2600mm 2000mm 1350mm |
| Max. peeling diameter | Φ480mm Φ480mm Φ480mm |
| Final roller diameter | Φ40mm Φ40mm Φ40mm |
| Peeled veneer thickness | 0.8~3.0mm 0.8~3.0mm 0.8~3.0mm |
| Output speed | 50m/Min 50m/Min 50m/Min |
| Potencia domotordosrolos duplos | 2×7.5=15kw 2×7.5=15kw 2×5.5=11kw |
| Single roller motor power | 2×7.5=15kw 2×5.5=11kw 2×5.5=11kw |
| Servomotordeavango | 11kw 7.5kw 7.5kw |
| Cutting motor | 2.2kw 2.2kw 2.2kw |
| Rotating roller motor | 1.5kw 1.5kw 1.5kw |
| Hydraulic motor power | 1.5kw 1.5kw 1.5kw |
| Total power | 46.2kw 38.7kw 34.7kw 10 |
| Pesoda maquina | 11200kg 10400kg 9700kg |
Specifications are published on the model spec sheet — request it and we'll send the full data.
Not sure this is the right model?
Send us your material and sizes — we'll confirm the specification, tooling and container loading.
