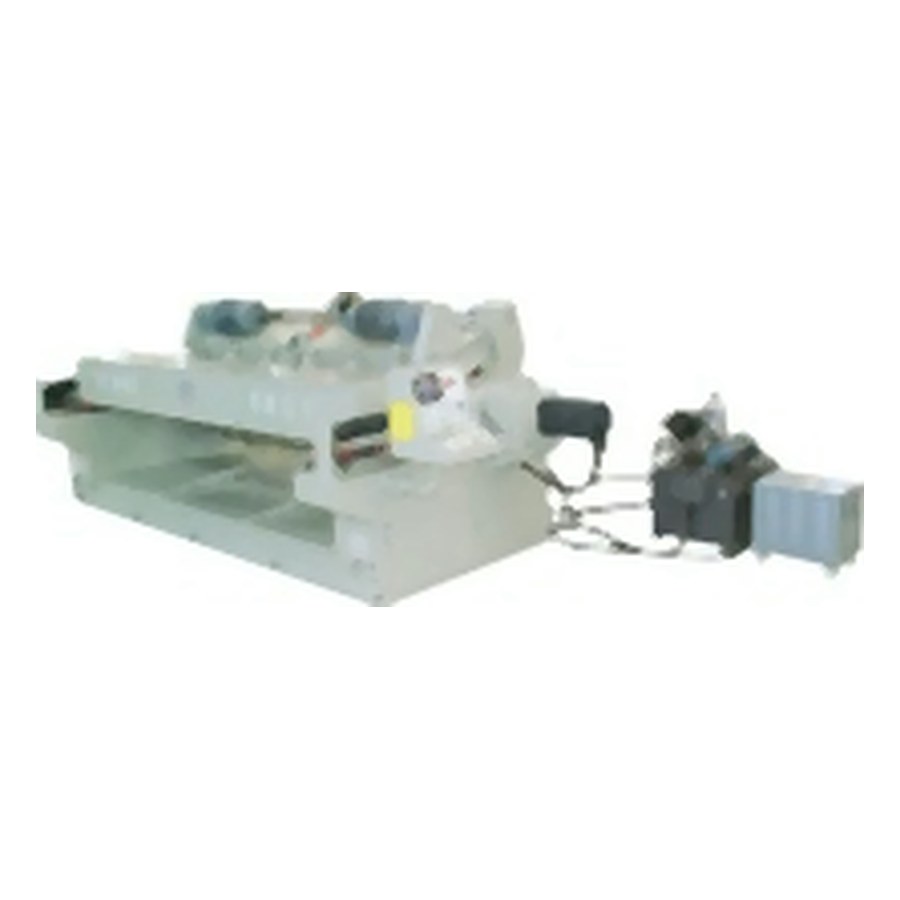

Spindleless CNC lathe with clipper · SLJ2600/5B
1 models · HTK-SLJ2600/5B
- Built for — peeling small-diameter logs without a spindle, maximising timber yield
- Main technical parameters： MODEL SL2600/5C SL2600/5B SL1350/5C SL1350/5B Max.rotary cutting length 2600mm 2600mm 1350mm 1350mm Max.rotary cutting diamerer 500mm 480mm 500mm 480mm The final diameter 60mm 40mm 60mm 40mm Veneer thickness 0.8-3.0mm 0.8-3.0mm 0.8-3.0mm 0.8-3.0mm Peeling speed 30-80m/min 30-80m/min 30-80m/min 30-80m/min Driven rollers motor power 44KM 44KM 30KM 30KM Feeding servo motor power 11KM 11KW 7KW 7KW Blade gap servo motor power 3.5KW 1.5KW 3.5KW 1.5KW Hydraulic motor power 1.5KW 1.5KW 1.5KW 1.5KW Motor 60KW 58KW 42KW 40KW Overall sizes 4600×2200×1900mm 4750×2150×1870mm 3350×2200×1900mm 3500×2150×1870mm Weight 13500Kg 11500Kg 12000Kg 10000Kg Prev: NULL Next: BQ1626/16B Hydraulic double clamp rotary cutting machine Specializing in the production of various
- Tooling — blade and knife sizes matched to your material
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
| Model / Stock No. | HTK-SLJ2600/5B |
|---|---|
| Model | SL(J)2600/5B SL(J)2000/5B SL(J)1350/5B |
| Max. peeling length | 2600mm 2000mm 1350mm |
| Max. peeling diameter | Φ480mm Φ480mm Φ480mm |
| Diametrofinal do rolete | Φ40mm Φ40mm Φ40mm |
| Espessura da lamina desenrolada | 0.8~3.0mm 0.8~3.0mm 0.8~3.0mm |
| Output speed | 60m/min 60m/min 60m/min |
| Potencia domotordosrolos duplos | 2x11=22kW 2x11=22kW 2x7.5=15kW |
| Potencia do motordo rolosimples | 2×11=22kW 2×7.5=15kW 2×7.5=15kW |
| Feed servo motor | 11kW 7kW 7kW |
| Servomotorda aberturadafaca | 1.5kW 1.5kW 1.5kW |
| Motordecorte | 3kW 2.2kw 2.2kw |
| Motordo rologiratorio | 1.5kW 1.5kW 1.5kW |
| Hydraulic motor power | 1.5k 1.5kW 1.5kW |
| Total power | 62.5kW 50.7kW 43.7kW 10 |
| Peso damaquina | 13160kg 12360kg 11660kg |
Specifications are published on the model spec sheet — request it and we'll send the full data.
