Automatic edge banders
7 models · HTK-CBD-1063M · HTK-CBD-453 · HTK-CBD-463 …
- Built for — continuous high-volume banding with trimming, scraping and buffing in one pass
- Panel thickness — 50–60 mm
- Feed speed — 15–21 m/min
- Drive power — 4.5–15 kW
- PUR-capable glue system — a near-invisible joint that resists heat and moisture
- EVA hot-melt glue pot — low running cost and simple maintenance
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications

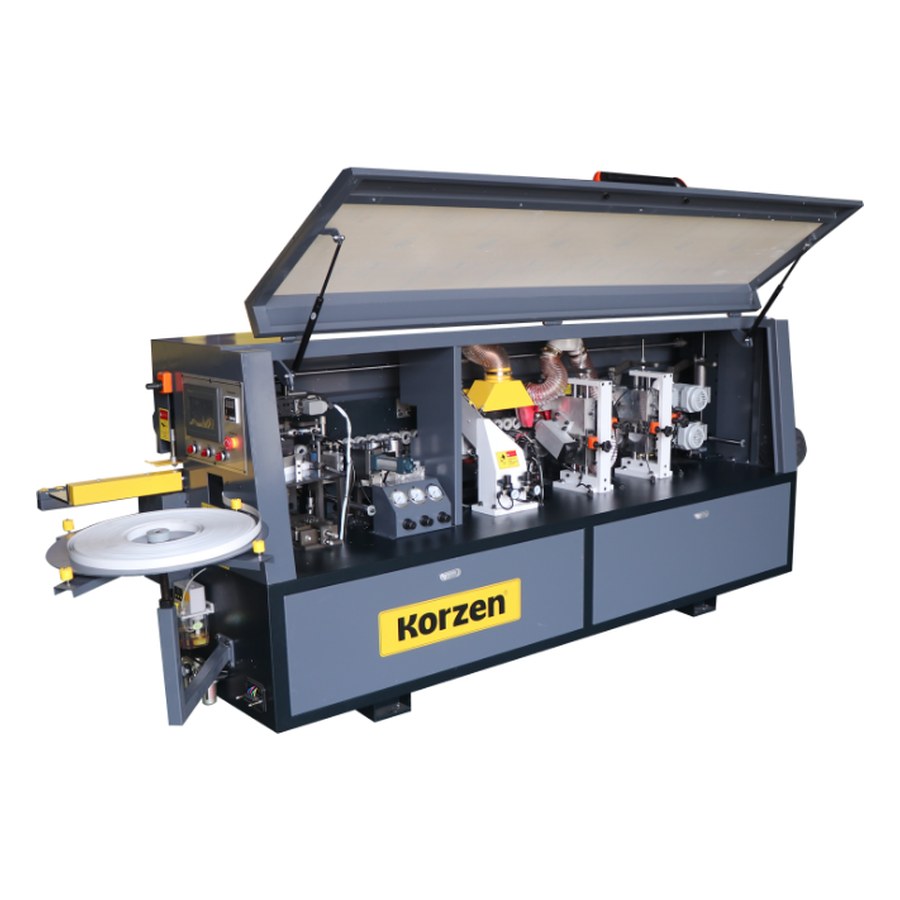

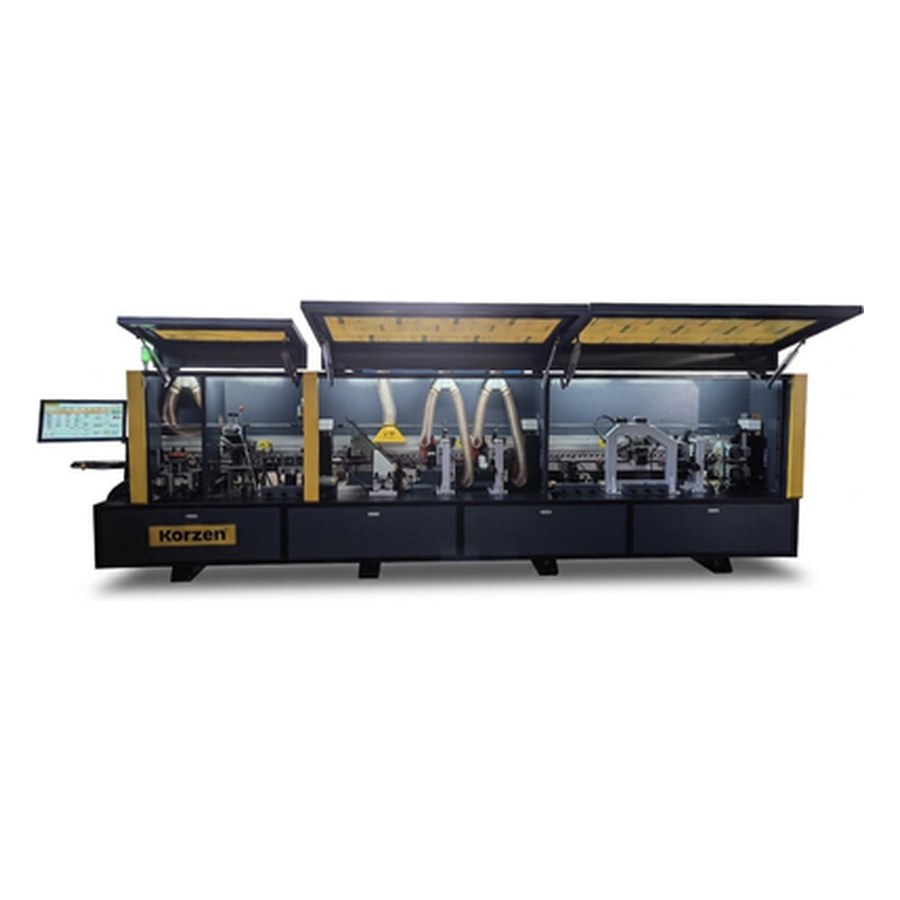

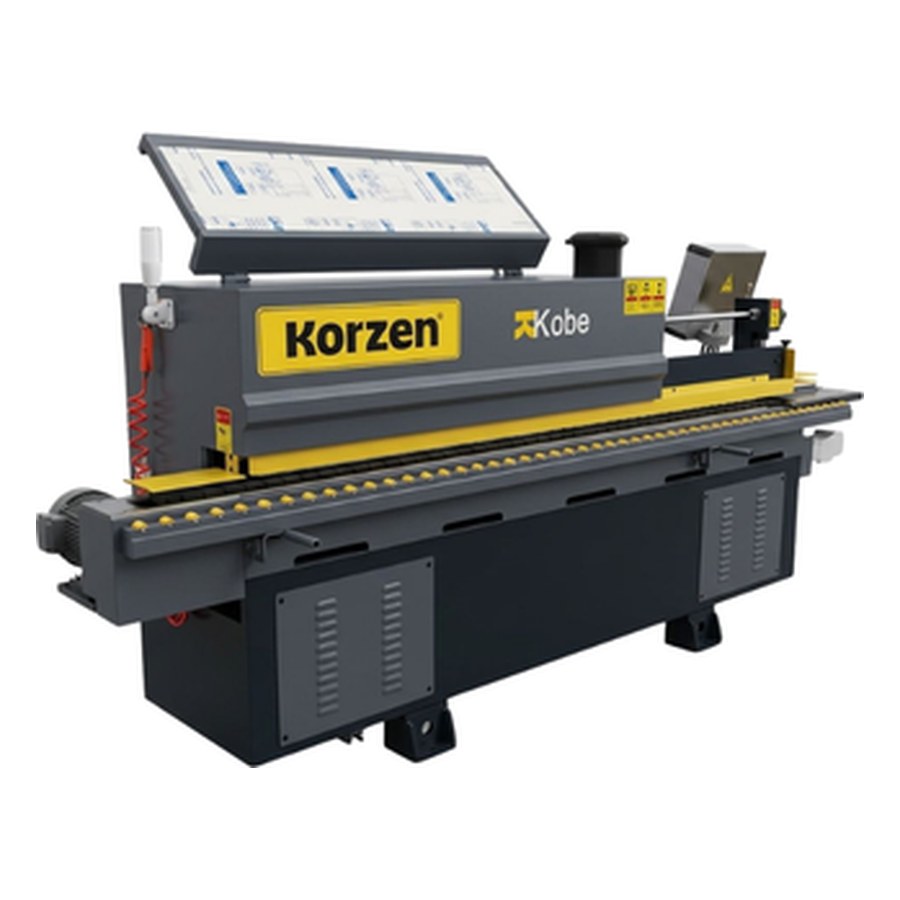

HTK-CBD-1063M · HTK-CBD-453 · HTK-CBD-463 · HTK-CBD-663 · HTK-CBD-863 · HTK-CBD-863M · HTK-CBD-963
| Model / Stock No. | HTK-CBD-1063M | HTK-CBD-453 | HTK-CBD-463 | HTK-CBD-663 | HTK-CBD-863 | HTK-CBD-863M | HTK-CBD-963 |
|---|---|---|---|---|---|---|---|
| Working units | Working units: non-stick, shaper, gluing, end trimming, trimming, scraping, polishing | 4 units: gluing, end trimming, fine trimming, polishing | 4 units: gluing, end trimming, fine trimming, polishing | 5 units: gluing, double end trimming, fine trimming, scraping, polishing | Working units: non-stick, shaper, gluing, end trimming, trimming, scraping, polishing | Working units: non-stick, shaper, gluing, end trimming, trimming, scraping, polishing | 8 units: gluing, double end trimming, rough and fine trimming, fine scraping, spray unit, polishing 1 and 2 |
| Edge band type | polimento 0.45–3.0 mm | 0.45–1.0 mm | 0.45–2.0 mm | 0.45–3.0 mm | 0.45–3.0 mm | 0.45–3.0 mm | 0.45–3.0 mm |
| Panel height | 10–60 mm | 10–50 mm | 10–60 mm | 10–60 mm | 10–60 mm | 10–60 mm | 10–60 mm |
| Min. panel width | 30 mm (ripados) | 30 mm (ripados) | 30 mm (ripados) | 30 mm (ripados) | 40 mm (V1) / 35 mm (V2) | 30 mm (ripados) | 30 mm (ripados) |
| Min. panel length | 60 mm | 70 mm | 70 mm | 70 mm | 70 mm | 60 mm | 60 mm |
| Conveyor speed | 15, 18 & 21 m/min | 15 m/min | 15 m/min | 15 m/min | 15, 18 & 21 m/min | 15, 18 & 21 m/min | 15, 18 & 21 m/min |
| Glue pot (quick change) | Hybrid upper pot, EVA / PO | EVA hot-melt / PO | EVA hot-melt / PO | EVA hot-melt / PO / PUR | Hybrid upper pot, EVA / PO | Hybrid upper pot, EVA / PO | Hybrid upper pot, EVA / PO |
| Control panel | Front touchscreen | with digital readout | with articulated arm | with digital readout | Front touchscreen (V1/V2) | Front touchscreen | Front touchscreen |
| Dust outlet | 4 × 4" (100 mm) | 1 × 4" (100 mm) | 1 × 4" (100 mm) | 2 × 4" (100 mm) | 4 × 4" (100 mm) | 4 × 4" (100 mm) | 4 × 4" (100 mm) |
| Drive power | 15.0 kW · three-phase 220/380 V | 4.5 kW · single-phase 220 V or three-phase 220/380 V | 6.5 kW · single-phase 220 V or three-phase 220/380 V | 8.5 kW · single-phase 220 V or three-phase 220/380 V | 13.5 kW · three-phase 220/380 V | 15.0 kW · three-phase 220/380 V | 11.5 kW · three-phase 220/380 V |
Specifications are published on the model spec sheet — request it and we'll send the full data.
