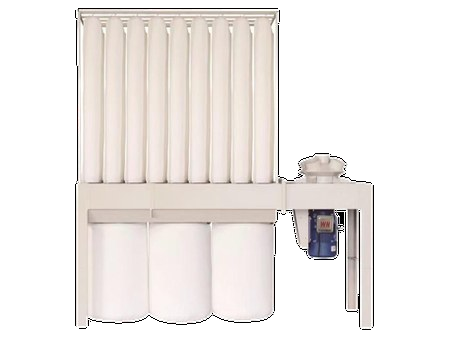

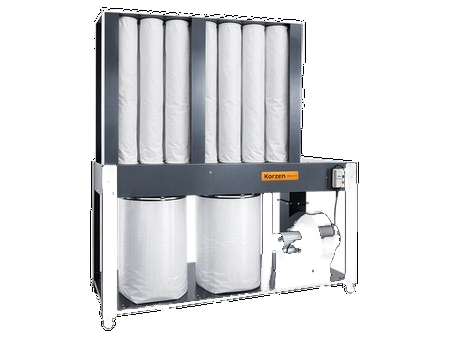

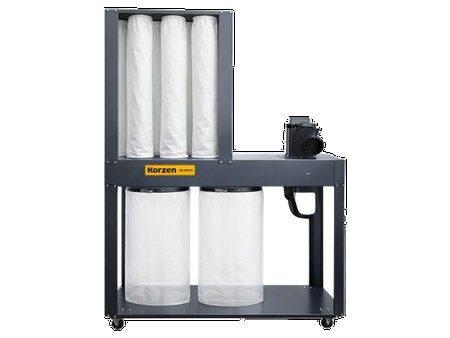

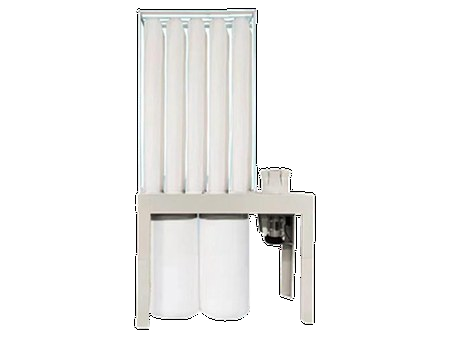

DCC-535S
7 models · COL-12420S · COL-373S · COL-535S …
- Built for — feeders, roller tables and dust collectors
- Tooling — blade and knife sizes matched to your material
- Units — metric and imperial dimensions on the same sheet
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
COL-12420S · COL-373S · COL-535S · COL-538S · COL-6210S · COL-6215S · COL-9315S
| Model / Stock No. | COL-12420S | COL-373S | COL-535S | COL-538S | COL-6210S | COL-6215S | COL-9315S |
|---|---|---|---|---|---|---|---|
| Reservatório Tank | 1240 litros Tipo Feltro/ Poliéster | 370 litros Tipo PVC Incolor | 530 litros Tipo PVC Incolor | 530 litros Tipo PVC Incolor | 620 litros Tipo Feltro/ Poliéster | 620 litros Tipo Feltro/ Poliéster | 930 litros Tipo Feltro/ Poliéster |
| Air Flow | 22000m3/hr | 4100m3/hr | 6300m3/hr | 7900m3/hr | 10800m3/hr | 12000m3/hr | 15000m3/hr |
| Filtration | 36x Filtros Mangas Ø175mm Tipo Feltro/Poliéster | 36x Filtros Mangas Ø175mm Tipo Feltro/ | 36x Filtros Mangas Ø175mm Tipo Feltro/ | 36x Filtros Mangas Ø175mm Tipo Feltro/ | 36x Filtros Mangas Ø175mm Tipo Feltro/ | 36x Filtros Mangas Ø175mm Tipo Feltro/ | 36x Filtros Mangas Ø175mm Tipo Feltro/ |
| Outlets for Machines | 1x 11" (280mm) ou 5x 5" (125mm) | Poliéster 1x 8" (200mm) | Poliéster 1x 10" (250mm) | Poliéster 1x 11" (280mm) | Poliéster 1x 11" (280mm) ou 5x 5" (125mm) | Poliéster 1x 11" (280mm) ou 5x 5" (125mm) | Poliéster 1x 11" (280mm) ou 5x 5" (125mm) |
| Frame | Chapa Reforçada, Cantoneiras e Caixa Retangular Industrial Reinforced Steel Plate, | Chapa Reforçada, Cantoneiras e Caixa Retangular Industrial Reinforced Steel Plate, | Chapa Reforçada, Cantoneiras e Caixa Retangular Industrial Reinforced Steel Plate, | Chapa Reforçada, Cantoneiras e Caixa Retangular Industrial Reinforced Steel Plate, | Chapa Reforçada, Cantoneiras e Caixa Retangular Industrial Reinforced Steel Plate, | Chapa Reforçada, Cantoneiras e Caixa Retangular Industrial Reinforced Steel Plate, | Chapa Reforçada, Cantoneiras e Cxa Retangular Industrial Reinforced Steel Plate, |
| On/Off Switch | Industrial Angle Bars, and Rectangular Box Section – | Industrial Angle Bars, and Rectangular Box Section Contator c/ Proteção Térmica c/ Botão de Emergência Contactor w/ | Industrial Angle Bars and Rectangular BoxSection – | Industrial Angle Bars, and Rectangular Box Section Contatora c/Proteção Térmica c/Botão de Emergência Contactor w/ | Industrial Angle Bars and Rectangular BoxSection – | Industrial Angle Bars, and Rectangular Box Section – | Industrial Angle Bars and Rectangular Box Section – |
| (CxLxA) Dimensions (LxWxH) | 3650 x 1040 x 3100mm (470kgs) | Thermal Protection w/ Emergency Stop Button 1670 x 640 x 2350mm (120kgs) | 2150 x 860 x 2650mm (260kgs) | Thermal Protection w/ Emergency Stop Button 2150 x 1040 x 2650mm (290kgs) | 2350 x 1040 x 3100mm (310kgs) | – | 2950 x 1040 x 3100mm (410kgs) |
| Drive Power | 20.0 CV Trifásico 220/380V | 3.0CV Trifásico 220/380V | 5.0CV Trifásico 220/380V | 7.5 CV Trifásico 220/380V | 10.0CV Trifásico 220/380V | 15.0CV Trifásico 220/380V | 15.0CV Trifásico 220/380V |
| (CxLxA) Switch Dimensions On/ Off (CxLxA) | – | – | – | – | – | Contatora 2350 x 1040 c/ Proteção x 3100mm Térmica (360 kg) c/ Botão | – |
Specifications are published on the model spec sheet — request it and we'll send the full data including metric and imperial units.
