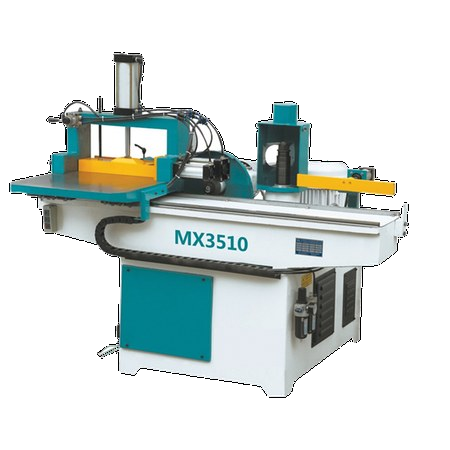

HTK-MX3510
1 models · HTK-PCO-1302
- Built for — planers, moulders, sanders, presses and finishing
- Tooling — blade and knife sizes matched to your material
- Units — metric and imperial dimensions on the same sheet
- Shipping — container loading data supplied before you order
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
HTK-PCO-1302
| Model / Stock No. | HTK-PCO-1302 |
|---|---|
| Espigo Max. Tenon Width | 100mm |
| Espigo Max. Tenon Thickness | 25mm |
| Espigo Max. Tenon Depth | 40mm |
| Spindle Diameter | ø30mm |
| Spindle Speed | 7800rpm |
| Main Motor Power | 2,2kW |
| Table Forward Tilt Angle | 20° |
| Table Left/Right Tilt Angle | ±15° |
| Air Source Pressure | 0,6MPa |
| Overall Dimensions | 1600 x 1300 x 1350mm |
| Net Weight | 1250kg |
Specifications are published on the model spec sheet — request it and we'll send the full data including metric and imperial units.
Not sure this is the right model?
Send us your material and sizes — we'll confirm the specification, tooling and container loading.
Get a quote
