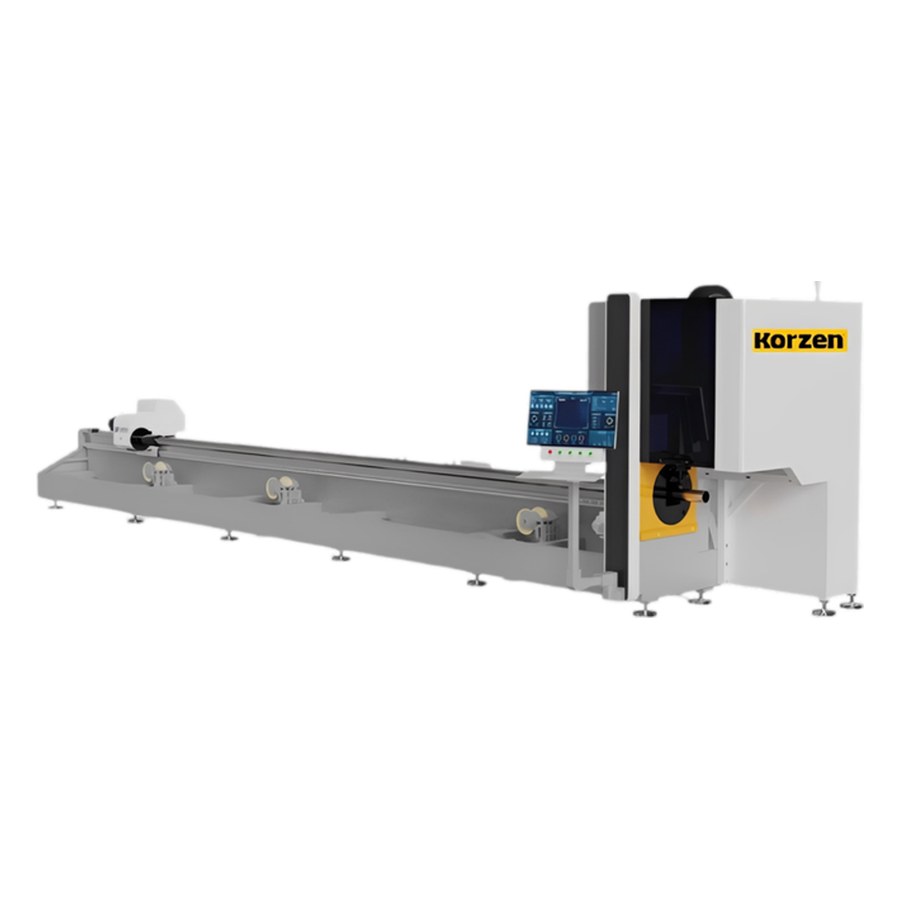

Tube laser cutters
3 models · TLC-6015ML · TLC-6015SA · HTK-LIX-1
- Built for — metal frame, profile and tube cutting, bending and machining
- Cutting speed — 150 rpm
- Laser type / power — 1500 W
- Cutting capacity — 16 mm
12
12-month warrantyFrame and head covered, parts available
24h
Reply within one working daySend photos or video, we diagnose with you
Specifications
TLC-6015ML · TLC-6015SA · HTK-LIX-1
| Model / Stock No. | TLC-6015ML | TLC-6015SA | HTK-LIX-1 |
|---|---|---|---|
| Laser type / power | 1500 W | 1500 W | Raycus fibre laser |
| Cutting capacity | 16 mm | 16 mm | Brass 3 / Aluminium 4 / Stainless 8 / Carbon steel 16 mm |
| Cutting speed | 150 rpm | 150 rpm | – |
| Bar Loading | – | – | Manual — 1 bar at a time |
| Tube Types (Length 1000–6500 mm) | – | – | Ø 15— 120 mm / 15 × 15 - 120 × 120 mm |
| Control per head | – | – | Automatic |
| Cutting / traverse speed | – | – | Spindle 150 rpm / traverse |
| Dimensions (L × W × H) | – | – | Length 8500 x Width 4200 x Height 2020 mm (4200kgs) L.8500 xW.4200 x H.2020 mm |
| Drive power | – | – | (4200 kg) three-phase 380 V (optional 220 V w/ transformer) |
| Semi-Automatic Loading | – | – | Automatic |
Specifications are published on the model spec sheet — request it and we'll send the full data.
Not sure this is the right model?
Send us your material and sizes — we'll confirm the specification, tooling and container loading.
Get a quote
